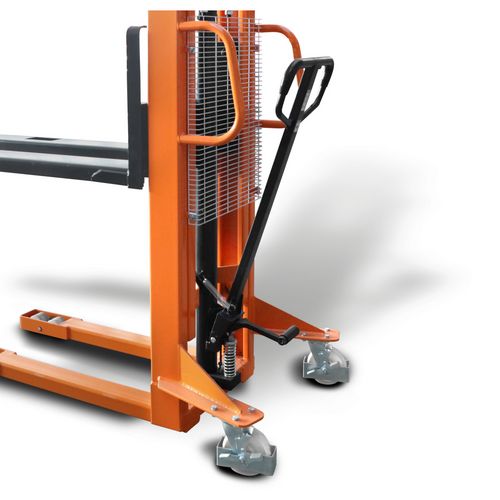

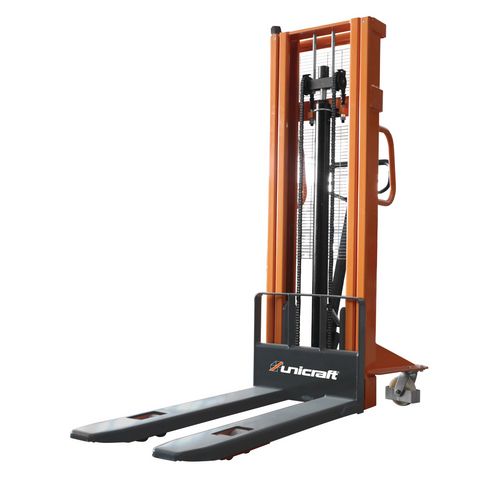

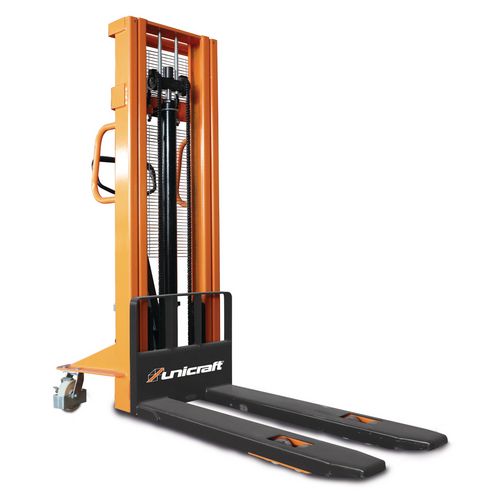

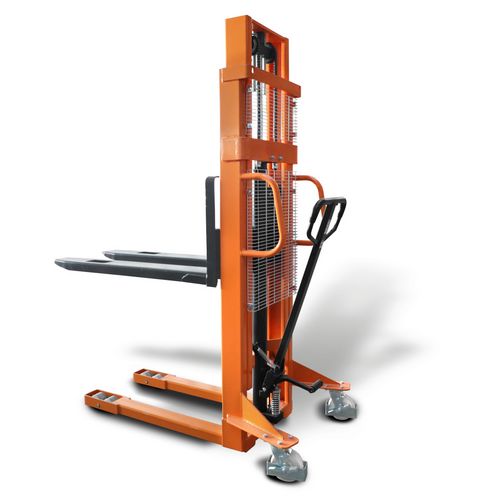

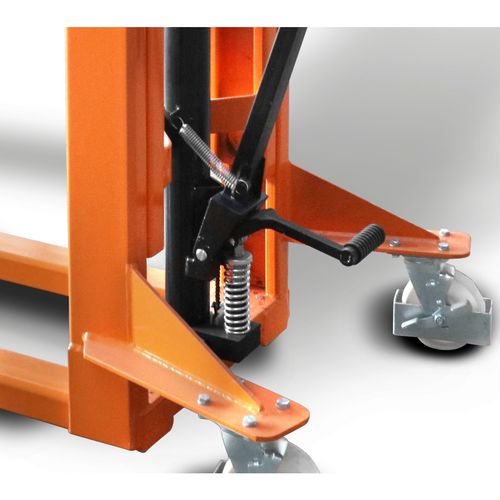

Stacker
Especially suitable for loading and unloading vehicles
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 6151020
Data sheets | |
---|---|
Sicherheitsdatenblatt | |
Safetydatasheet |
Load-bearing capacity | 1 t |
Load-bearing width | 580 mm |
Fork width | 170 mm |

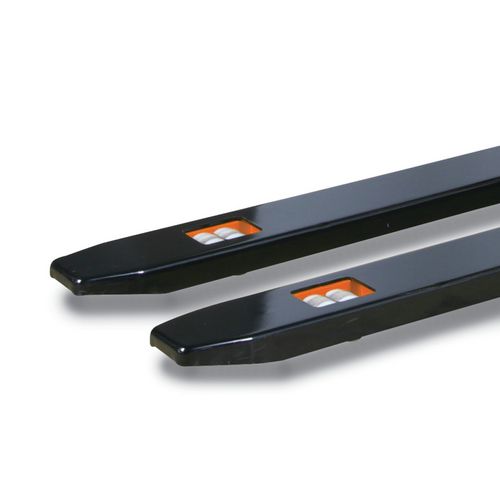

Fork length | 1150 mm |
Lifting range | 0 – 2500 mm |
Lifting speed | 20 mm/s |
Turning radius | 1350 mm |
VPE | 1 |
Dimensions and weights | |
---|---|
Height max. approx. | 2925 mm |
Steering rollers diameter | 80 mm |
Steering rollers width | 70 mm |
Fork roller diameter | 147 mm |
Fork roller width | 40 mm |
Length approx. | 1695 mm |
Width/depth approx. | 860 mm |
Height approx. | 1838 mm |
Weight approx. | 292 kg |
Steering rollers material | Nylon |
Fork roller material | Nylon |
