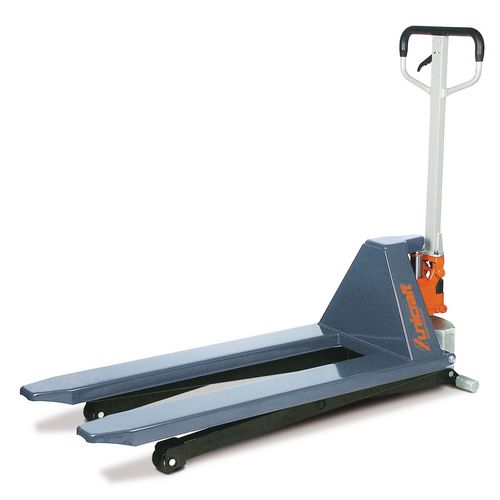

    Scissor pallet truck

    PHH 1001

    The mobile lift with 1 t lifting capacity

    849,00 EUR excl. Tax / pc(s).
    1.010,31 EUR incl. 19% Tax / pc(s).
    Promotional price *
    729,00 EUR excl. Tax / pc(s).
    867,51 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6150100

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Robust fully hydraulic lifting and lowering device

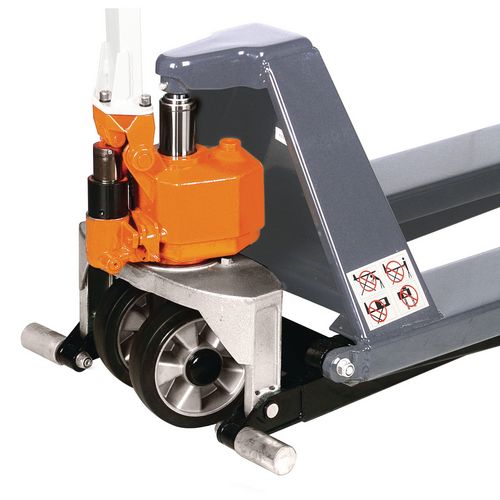

    • Smooth-running hydraulic pump with hard chromed piston and pressure relief valve
    • Lowering speed infinitely adjustable via sensitive discharge valve
    • Fast achievement of the max. Fork height by mechanical quick lift
    • Lift via telescopic cylinder with three different lifting stages
    • Frame and fork in stable and torsion-resistant shell construction
    • Very agile due to the steering angle of 210 degrees

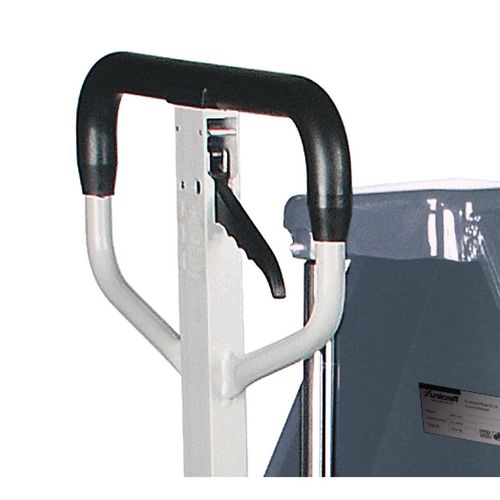

    • Ergonomically shaped drawbar with additional plastic coating
    • Easy handling even of heavy loads by switching from pumped to neutral position
    • Runs extralegally through aluminum castors

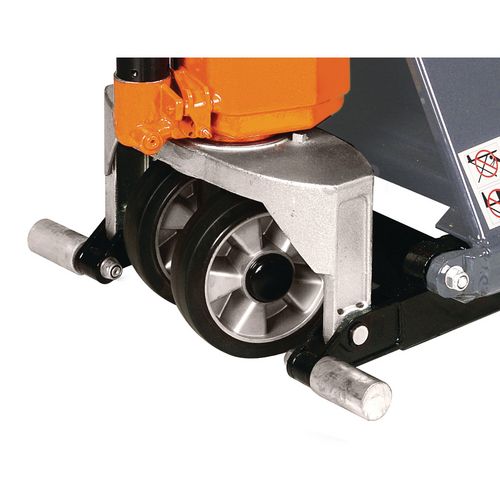

    • With solid rubber treads and polyurethane casters
    • Maintenance-free precision ball bearings in all wheels and castors



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Load capacity1 t
    Load-bearing width540 mm
    Fork width160 mm
    Fork length1150 mm
    Lifting range85 – 800 mm
    VPE1
    Dimensions and weights
    Steering rollers diameter180 mm
    Steering rollers width50 mm
    Fork roller diameter74 mm
    Fork roller width50 mm
    Length approx.1515 mm
    Width/depth approx.540 mm
    Height approx.1225 mm
    Weight approx.122 kg
    Unit: pc(s).
    Packaging unit: 1
