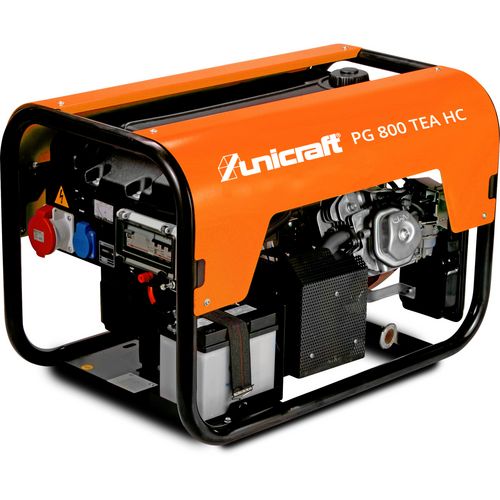

    Productimage for PG 800 TEA HC
    Brandimage to Product PG 800 TEA HC

    Synchronous power generator

    PG 800 TEA HC

    Gasoline generator for home power supply

    3.445,00 EUR excl. Tax / pc(s).
    4.099,55 EUR incl. 19% Tax / pc(s).
    Promotional price *
    3.059,00 EUR excl. Tax / pc(s).
    3.640,21 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Sicherheitsdatenblatt

    Safetydatasheet

    Art.-No. 6702085

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Suitable for house supply with manual mains disconnector switch
    • Through "CONN interface" also compatible with automatic mains isolator switch
    • Sound-insulated diesel engine (complies with noise and exhaust emission regulations)
    • Connections ergonomically located on the front side in a control panel with voltmeter and hour meter
    • AVR electronic voltage regulation
    • Thermo-magnetic circuit breaker protects against overload and short circuit caused by defective consumers or lines
    • Low oil cut-off
    • Long running times due to 18l large tank
    • Comfortable starting at the push of a button with E-Start
    • Quality Made in Europe



    Data sheets
    Sicherheitsdatenblatt
    Safetydatasheet
    Dimensions and weights
    Length approx.842 mm
    Width/depth approx.523 mm
    Height approx.557 mm
    Weight approx.99 kg
    Drive
    DriveHonda GX390
    Power factor0.8 / 0.9 Cos ɸ
    StarterManual start / electric start
    FuelGasoline
    Tank capacity18 l
    Sound pressure level Lp72 dB(A)
    Sound power level Lw97 dB(A)
    Max. shift load30 %
    Power generator
    Nominal voltage230 / 400 V
    Apparant power LTP4.0 / 8.3 kVA
    Active power LTP3.6 / 6.6 kW
    Apparent power COP3.7 / 7.0 kVA
    Active power COP3.3 / 5.6 kW
    Generator IP degree of protectionIP 23
    Socket type1 x 230 V, Schuko / 1 x 400 V, 16 A
    Socket IP degree of protectionIP 44
    VPE1
    Unit: pc(s).
    Packaging unit: 1
