    Productimage for PG 800 X-TEA-54
    Brandimage to Product PG 800 X-TEA-54

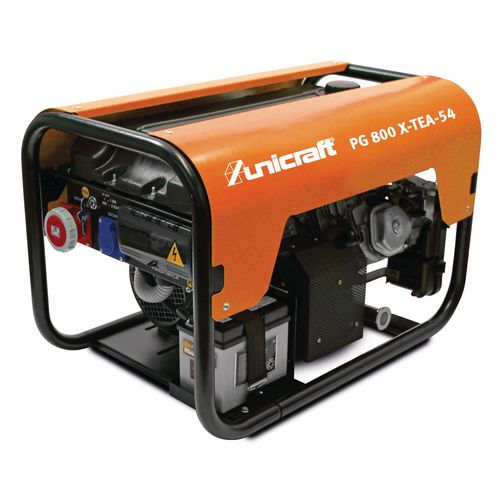

    Synchronous power generator

    PG 800 X-TEA-54

    Suitable for the demanding user and the industrial continuous use. Particularly suitable for heavy starting machines and power tools.

    4.899,00 EUR excl. Tax / pc(s).
    5.829,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    4.269,00 EUR excl. Tax / pc(s).
    5.080,11 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Sicherheitsdatenblatt

    Art.-No. 6703083

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Protection class IP 54
    • Ergonomic connections on the front side in a control panel with voltmeter and operating hours counter
    • Spray and impact protection through cladding sheets
    • Long maturities through 18l large tank
    • (PG 1200 X-TEA-54 24l)
    • High comfort through electric start
    • Electronic voltage regulation AVR
    • Thermal magnetic circuit breaker protects against overload and short circuit due to defective loads or cables
    • Short term power up to 4 times the rated power
    • 200% unlawful
    • Safe personal protection through insulation monitoring (device does not need to be earthed)
    • Low oil shutdown
    • Quality Made in Europe



    • Protection class generator IP 54
    • Large tank 18 l
    • E-Start / Handstart



    Data sheets
    Sicherheitsdatenblatt
    Dimensions and weights
    Length approx.842 mm
    Width/depth approx.523 mm
    Height approx.557 mm
    Weight approx.113 kg
    Drive
    DriveHonda GX390
    Power factor0.8 / 0.9 Cos ɸ 230V/400V
    StarterManual start / electric start
    FuelGasoline
    Tank capacity18 l
    Sound pressure level Lp72 dB(A)
    Sound power level Lw97 dB(A)
    Max. shift load200 %
    Power generator
    Nominal voltage230 / 400 V
    Apparant power LTP4.8 / 8.8 kVA
    Active power LTP4.3 / 7.1 kW
    Apparent power COP4.0 / 6.8 kVA
    Active power COP3.6 / 5.4 kW
    Generator IP degree of protectionIP 54
    Socket type2 x 230 V, 16 A / 1 x 400 V, 16 A
    Socket IP degree of protectionIP 54
    VPE1
    Unit: pc(s).
    Packaging unit: 1







    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
