    Synchronous power generator

    PG-D 150 TEA-S HC

    Diesel power generator for home feeding

    4.659,00 EUR excl. Tax / pc(s).
    5.544,21 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 6731150

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Suitable for domestic supply with manual mains disconnector
    • Also equipped with connection for automatic mains disconnector
    • The Equal Power function enables a significantly higher output power in 230V: With most generators, the output power in 230V is approx. 30% of the output power in 400V. The Equal Power function achieves an output power in 230V of approx. 80%!
    • Soundproofed diesel engine (complies with noise and exhaust emission regulations)

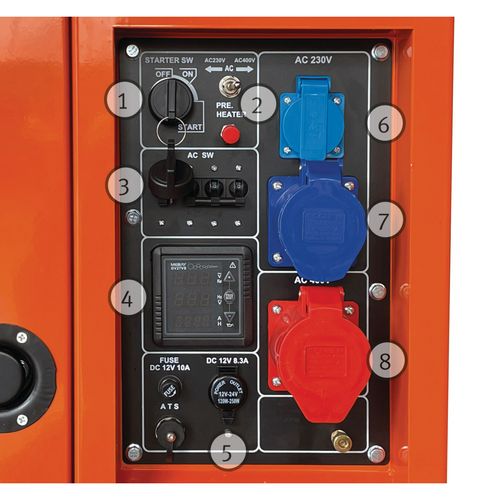

    • Connections ergonomically located on the side of the appliance in a control panel with digital display (DC voltage, output power, AC voltage, frequency, amperage, operating hours)
    • Splash and impact protection thanks to full cladding
    • Electronic voltage regulation AVR
    • Low oil indicator
    • Long running times thanks to large 30 liter tank
    • Convenient starting at the touch of a button with E-Start
    • With preheater for quick and easy starting even in cold temperatures
    • Sturdy chassis with two swivel castors



    Dimensions and weights
    Length approx.1210 mm
    Width/depth approx.710 mm
    Height approx.970 mm
    Weight approx.340 kg
    Drive
    Motor size1247 ccm
    Power factor1 / 0.8 Cos ɸ
    StarterE-Start
    Fueldiesel
    Tank capacity30 l
    Running time at 50% load13 h
    Running time at 100% load8 h
    Oil tank capacity3.8 l
    Sound pressure level Lp75 dB(A)
    Sound power level Lw97 dB(A)
    Max. shift load60 %
    Number of cylinders2
    Electrical Data
    Mains frequency50 Hz
    Manufacturer infos
    ManufacturerStürmer Maschinen GmbH
    AddressDr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
    E-Mailinfo@stuermer-maschinen.de
    Power generator
    Nominal voltage230 / 400 V
    Apparant power LTP15,5 / 19,4 kVA
    Active power LTP12,4 / 15,5 kVA
    Apparent power COP15 / 18,8 kVA
    Active power COP12 / 15 kVA
    Generator IP degree of protectionIP 23
    Socket type1x 230V 16A Schuko / 1x 230V 32A CEE / 1x 400V 32A CEE
    Socket IP degree of protectionIP 44
    Product information EU 2023/2854
    Type of the generated dataUsage data
    Format of the generated dataCommon, machine-readable formats such as JSON
    Amount of dataUp to 5 MB
    Continuous data generation in real timeYes
    VPE1
    Unit: pc(s).
    Packaging unit: 1







    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
