| Dimensions and weights | |
|---|---|
| Length approx. | 2050 mm |
| Width/depth approx. | 850 mm |
| Height approx. | 1150 mm |
| Weight approx. | 780 kg |

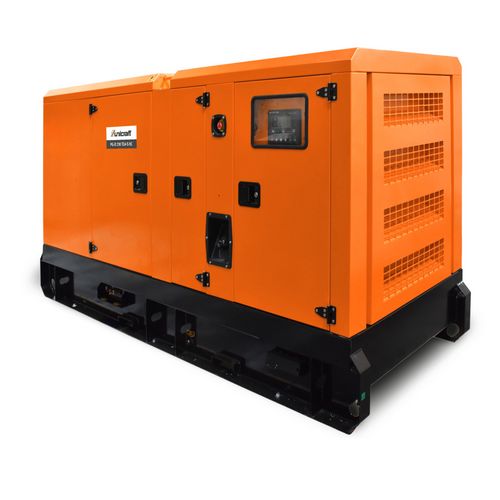

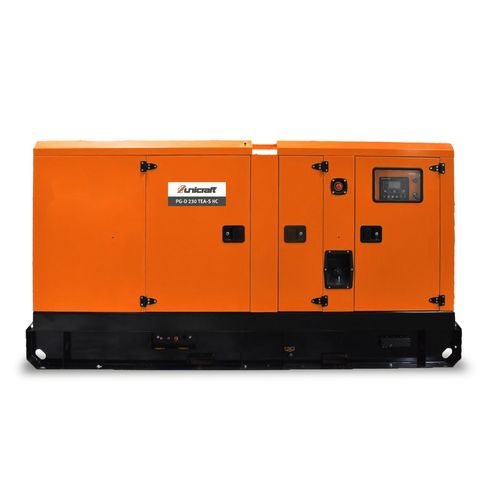

Synchronous power generator
PG-D 230 TEA-S HC
Diesel power generator for home feeding
11.590,00
EUR excl. Tax / pc(s).
13.792,10 EUR incl. 19% Tax / pc(s).
13.792,10 EUR incl. 19% Tax / pc(s).
Promotional price *
10.799,00 EUR excl. Tax / pc(s).12.850,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2026 in Germany.
Art.-No. 6740123
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Long running times thanks to large tank
- Including 1h socket and changeover switch
- Includes insulation monitoring for all outlets except 1h socket
- Suitable for domestic feed-in with manual mains isolator switch
- Also equipped with connection for automatic mains disconnector
- Soundproofed diesel engine (complies with noise and exhaust emission regulations)
- Connections ergonomically located on the side of the appliance in a control panel with digital display (DC voltage, output power, AC voltage, frequency, amperage, operating hours)
- Splash and impact protection thanks to full cladding
- Electronic voltage regulation AVR
- Low oil indicator
- Convenient starting at the touch of a button with E-Start
- With preheater for quick and easy starting even in cold temperatures
- Equipped with high-quality "Stamford generator"
Note: Generators are supplied without coolant!
- Long running times thanks to large tank
- Including 1h socket and changeover switch
- Including insulation monitoring for all outlets except 1h socket
- Suitable for domestic feed-in with manual mains isolator switch
- Soundproofed diesel engine (complies with noise and exhaust emission regulations)
- Electronic voltage regulation AVR
- Convenient starting at the touch of a button with E-Start
- With preheater for quick and easy starting even in cold temperatures
| Drive | |
|---|---|
| Drive | 4D20G00/5 |
| Emission standard | Stage V |
| Power factor | 0.8 Cos ɸ |
| Starter | E-Start |
| Fuel | diesel |
| Tank capacity | 60 l |
| Running time at 50% load | 10 h |
| Running time at 100% load | 8 h |
| Oil tank capacity | 5.5 l |
| Coolant capacity | 8 l |
| Sound pressure level Lp | 75 dB(A) |
| Sound power level Lw | 97 dB(A) |
| Electrical Data | |
|---|---|
| Mains frequency | 50 Hz |
| Power generator | |
|---|---|
| Nominal voltage | 230 / 400 V |
| Apparant power LTP | 6.9 / 23 kVA |
| Active power LTP | 5.4 / 18 kW |
| Apparent power COP | 6.0 / 20 kVA |
| Active power COP | 4.8 / 16 kW |
| Generator IP degree of protection | IP 23 |

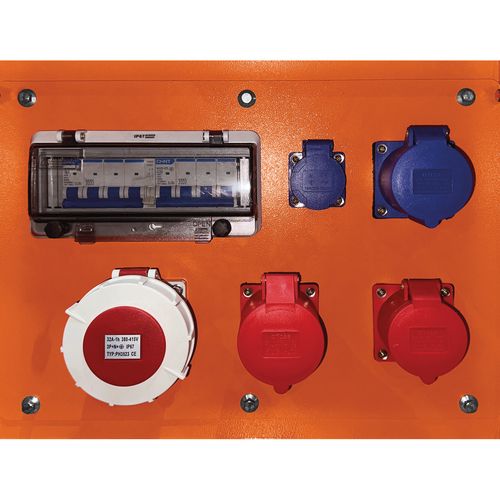

| Socket type | 1x 230V, 16 A, Schuko / 1x 230V, 32 A, CEE / 1x 400V, 16 A, CEE / 1x 400V, 32 A, CEE / 1x 400V, 32 A, 1h |
| Socket IP degree of protection | IP 44 |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

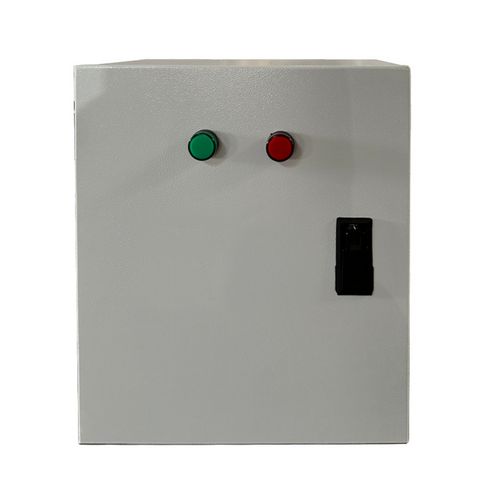

Automatic circuit breaker
