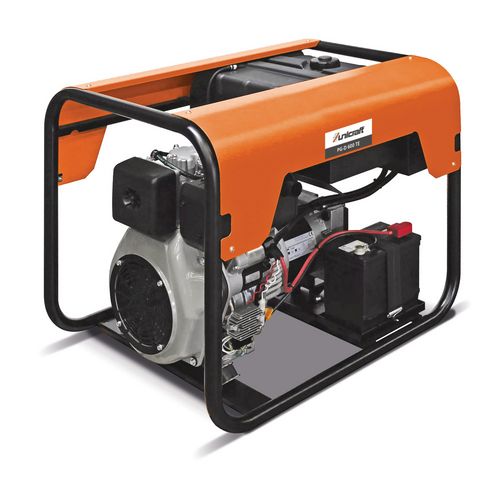

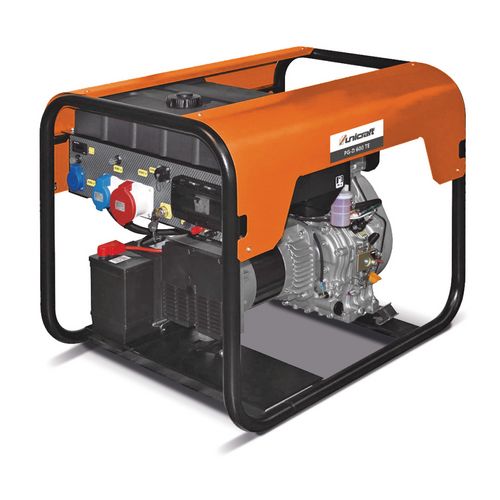

Synchronous power generator
PG-D 600 TE
Robust diesel power generator
4.189,00
EUR excl. Tax / pc(s).
4.984,91 EUR incl. 19% Tax / pc(s).
4.984,91 EUR incl. 19% Tax / pc(s).
Promotional price *
3.779,00 EUR excl. Tax / pc(s).4.497,01 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 6705073
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Connections ergonomically positioned on the front
- Standard with insulation monitoring, thermal circuit breaker and oil monitoring
- Convenient electric start-up
- Robust tubular steel frame with protective steel cover
- Easy to use
- Digital display for volt- and hour meter
- Long running time thanks to large 24 litre tank
- Does not comply with noise standard 2000/14/EC, not approved for outdoor operation without noise protection measures
- Quality made in Europe
- Standard with insulation monitoring, thermal circuit breaker and oil level monitoring
- Comfortable electric starter
- Robust tubular steel frame with protective steel cover
- Quality made in Europe
| Dimensions and weights | |
|---|---|
| Length approx. | 840 mm |
| Width/depth approx. | 641 mm |
| Height approx. | 696 mm |
| Weight approx. | 124 kg |
| Drive | |
|---|---|
| Drive | Yanmar L100 Electric |
| Power factor | 0.9 / 0.8 Cos ɸ |
| Starter | E-Start |
| Fuel | Diesel |
| Tank capacity | 24 l |
| Running time at 100% load | 12.37 h |
| Oil tank capacity | 1.6 l |
| Sound power level Lw | 97 dB(A) |
| Max. shift load | 30 % |
| Power generator | |
|---|---|
| Nominal voltage | 230 / 400 V |
| Max. voltage deviation (+/-) | 6 % |
| Apparant power LTP | 3.2 / 6.9 kVA |
| Active power LTP | 2.9 / 5.5 kW |
| Apparent power COP | 3.0 / 5.6 kVA |
| Active power COP | 2.7 / 4.5 kW |
| Generator IP degree of protection | IP 23 |
| Socket type | 1x SCHUKO 230V 16A IP54, 2x 2P+T CEE 230V 16A IP44, 1x 3P+N+T CEE 400V 16A IP44 |
| Socket IP degree of protection | IP 44 / IP 54 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
