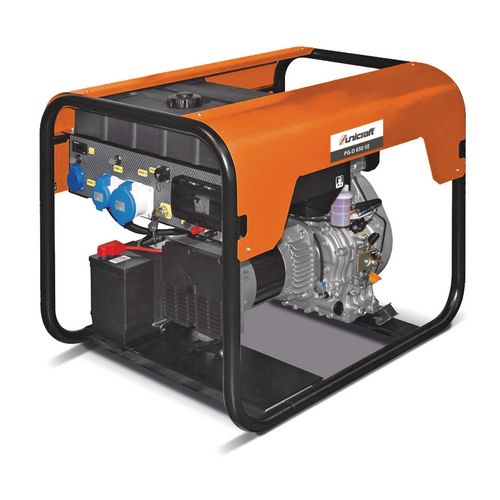

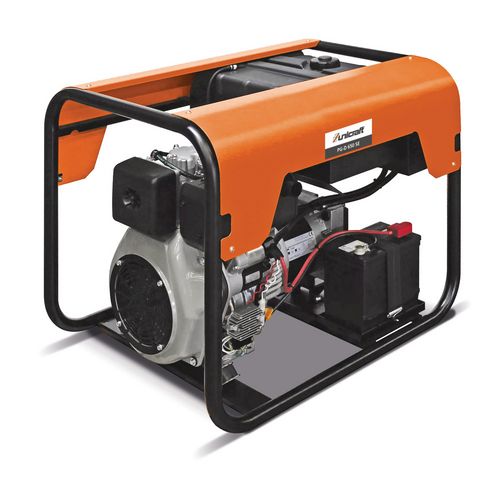

    Synchronous power generator

    PG-D 650 SE

    Robust diesel power generator

    3.879,00 EUR excl. Tax / pc(s).
    4.616,01 EUR incl. 19% Tax / pc(s).
    Promotional price *
    3.499,00 EUR excl. Tax / pc(s).
    4.163,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Sicherheitsdatenblatt

    Safetydatasheet

    Art.-No. 6705071

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Connections ergonomically positioned on the front
    • Standard with insulation monitoring, thermal circuit breaker and oil monitoring
    • Convenient electric start-up
    • Robust tubular steel frame with protective steel cover
    • Easy to use
    • Digital display for volt- and hour meter
    • Long running time thanks to large 24 litre tank
    • Does not comply with noise standard 2000/14/EC, not approved for outdoor operation without noise protection measures
    • Quality made in Europe



    • Standard with insulation monitoring, thermal circuit breaker and oil level monitoring
    • Comfortable electric starter
    • Robust tubular steel frame with protective steel cover
    • Quality made in Europe



    Data sheets
    Sicherheitsdatenblatt
    Safetydatasheet
    Dimensions and weights
    Length approx.840 mm
    Width/depth approx.641 mm
    Height approx.696 mm
    Weight approx.114 kg
    Drive
    DriveYanmar L100 Electric
    Power factor0.9 Cos ɸ
    StarterE-Start
    FuelDiesel
    Tank capacity24 l
    Running time at 100% load12.37 h
    Oil tank capacity1.6 l
    Sound power level Lw>97 dB(A)
    Power generator
    Nominal voltage230 V
    Max. voltage deviation (+/-)5 / 10 %
    Apparant power LTP5.9 kVA
    Active power LTP5.3 kW
    Apparent power COP4,8 kVA
    Active power COP4.4 kW
    Generator IP degree of protectionIP 23
    Socket type1x SCHUKO 230V 16A IP54, 1x 2P+T CEE 230V 16A IP44, 1x 2P+T CEE 230V 32A IP44
    Socket IP degree of protectionIP 44 / IP 54
    VPE1
    Unit: pc(s).
    Packaging unit: 1
