| Dimensions and weights | |
|---|---|
| Length approx. | 700 mm |
| Width/depth approx. | 526 mm |
| Height approx. | 580 mm |
| Weight approx. | 93.7 kg |

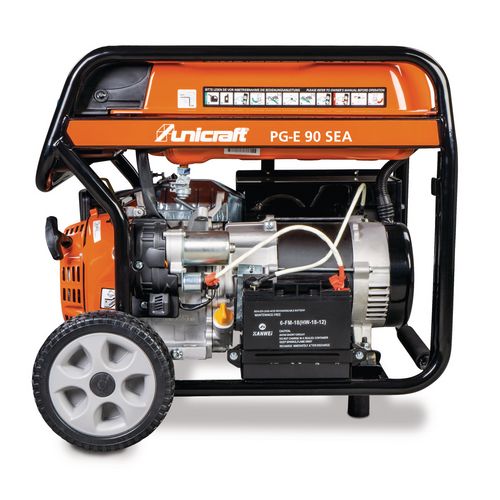

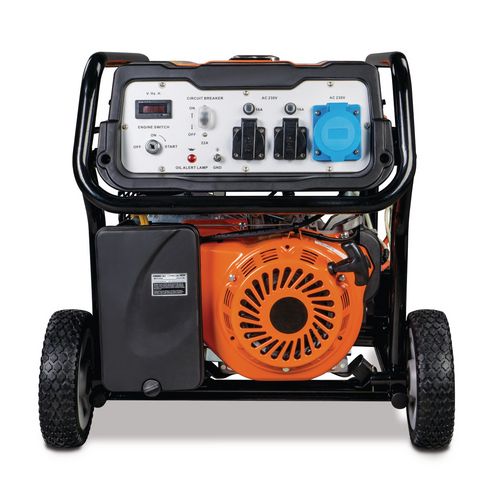

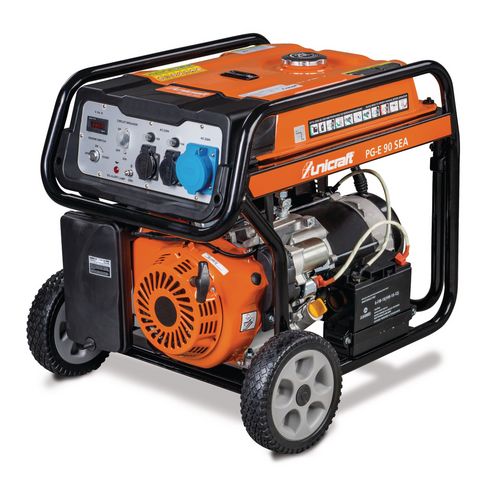

Synchronous power generator
PG-E 90 SEA
for the demanding private user and the semi-professional
1.029,00
EUR excl. Tax / pc(s).
1.224,51 EUR incl. 19% Tax / pc(s).
1.224,51 EUR incl. 19% Tax / pc(s).
Promotional price *
889,00 EUR excl. Tax / pc(s).1.057,91 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 6706090
Are you interested in this product?
Put a request
Find Trader
Productdetails
- All generators with copper windings
- Short term power up to 3 times the rated power
- Automatic voltage regulation AVR provides constant output voltage and enables the generator to be operated at a constant voltage.makes operation of sensitive equipment easier
- Overload protection by thermal circuit breaker/li>
- low oil shutdown with warning lamp

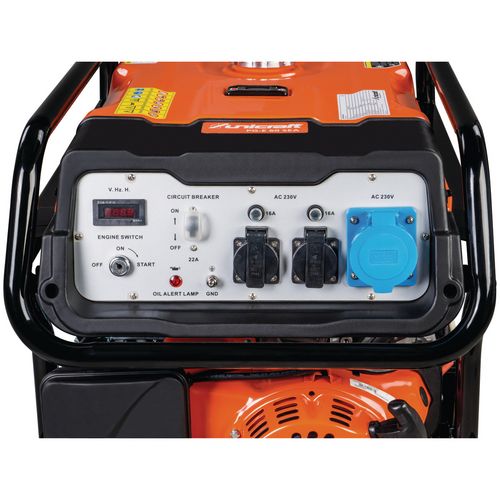

- 3 in 1 display for voltage, frequency and operating hours
- long running time due to large tank
- Tank with level indicator
- Connections ergonomically favourable at the front side

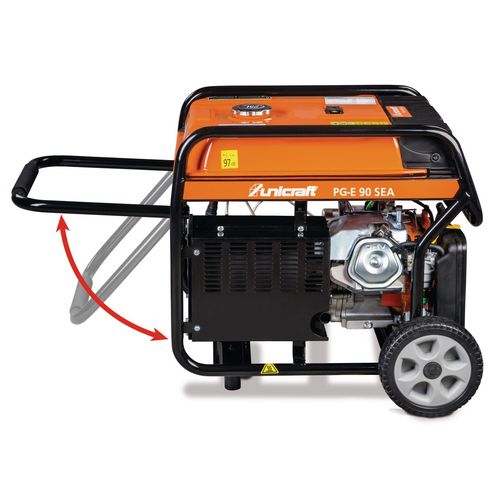

- Easy transport thanks to wheel set and stable folding handles
| Drive | |
|---|---|
| Drive | AP192FBD |
| Power factor | 0.9 Cos ɸ |
| Starter | Manual start / electric start |
| Fuel | Gasoline |
| Tank capacity | 25 l |
| Running time at 50% load | 12 H |
| Running time at 100% load | 8 H |
| Sound pressure level Lp | 67 dB(A) |
| Sound power level Lw | 97 dB(A) |
| Power generator | |
|---|---|
| Nominal voltage | 230 V |
| Max. voltage deviation (+/-) | 3 % |
| Apparant power LTP | 8.8 kVA |
| Active power LTP | 8.0 kW |
| Apparent power COP | 8.25 kVA |
| Active power COP | 7.5 kW |
| Generator IP degree of protection | IP23M |
| Socket type | 2 x 230 V, Schuko / 1 x 230 V, 32 A |
| Socket IP degree of protection | IP44 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Wheelset with folding handle
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
