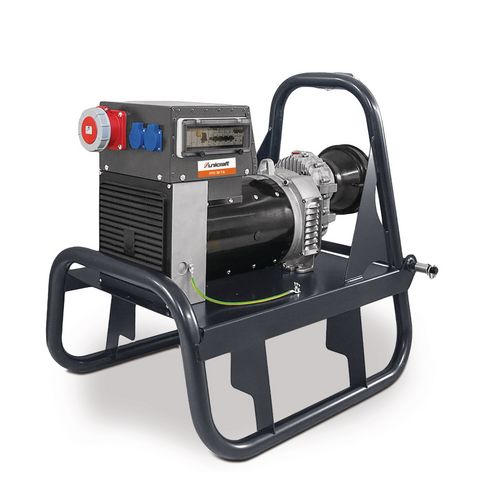

Synchronous power generator

PTO 38 TA

With maintenance-free PTO shaft drive

4.599,00 EUR excl. Tax / pc(s).
5.472,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 6710031

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Generator for continuous operation in agriculture or during power outages
    • Easily accessible connections on the top
    • Control panel with hour meter, voltmeter and frequency meter
    • Robust design with protection class IP23
    • Electronic voltage control AVR
    • Thermal circuit breaker protects against overload and short circuit caused by defective loads or lines
    • Inexpensive alternative to diesel generators
    • Quality Made in Europe



    • Control panel with hour meter, voltmeter and frequency meter
    • Robust design with IP23 protection
    • Electronic voltage control AVR
    • Thermal circuit breaker protects against overload and short circuits caused by defective loads or lines



    Dimensions and weights
    Length approx.950 mm
    Width/depth approx.800 mm
    Height approx.933 mm
    Weight approx.179 kg
    Drive
    DrivePTO shaft
    Three-point hitchCategory 1
    Output recommended (tractor)77 (105) kW (PS)
    PTO speed428 min¯¹
    Power factor1 / 0.8 Cos ɸ
    Max. shift load10 %
    Power generator
    Nominal voltage230 / 400 V
    Max. voltage deviation (+/-)1 %
    Apparant power LTP16.7 / 41.8 kVA
    Active power LTP16.7 / 33.44 kW
    Apparent power COP15.2 / 38 kVA
    Active power COP15.2 / 30.4 kW
    Generator IP degree of protectionIP 23
    Socket type2 x 230 V 16 A / 1 x 400 V 63 A
    Socket IP degree of protectionIP 44
    VPE1
    Unit: pc(s).
    Packaging unit: 1
