| Bending performance | |
|---|---|
| Roller speed | 6 m/min |
Motorized plate rolling machine
RBM E
Asymmetrical with three rollers
From
5.549,00
EUR excl. Tax / pc(s).
From 6.603,31 EUR incl. 19% Tax / pc(s).
From 6.603,31 EUR incl. 19% Tax / pc(s).
Promotional price *
From 5.299,00 EUR excl. Tax / pc(s).From 6.305,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Are you interested in this product?
Put a request
Find Trader
Variations
| Bending performance | Dimensions and weights | Electrical Data | General | Price | Promotional price * | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Max. bending performance in steel 400 N/mm²² (mm) | Max. taper bending performance in steel 400 N/mm² (mm) | Max. bending performance in stainless steel (mm) | Max. taper bending performance in stainless steel (mm) | Max. bending performance aluminium (mm) | Max. taper bending performance in aluminium (mm) | Min. bending diameter (mm) | Max. working width (mm) | Top roller diameter (mm) | Length approx. (mm) | Weight approx. (kg) | Drive motor output (kW) | VPE | EUR excl. Tax | EUR incl. 19% Tax | EUR excl. Tax | EUR incl. 19% Tax | |
| RBM 1050-30E | 3813201 | 3.0 | 1.5 | 2.25 | 1.1 | 3.6 | 1.8 | 135 | 1050 | 90 | 1630 | 480 | 1.1 | 1 | 5.299,00 | 6.305,81 | |||
| RBM 1270-25E | 3813202 | 2.5 | 1.2 | 1.8 | 0.9 | 3.0 | 1.5 | 135 | 1270 | 90 | 1850 | 520 | 1.1 | 1 | 5.499,00 | 6.543,81 | |||
| RBM 1550-20E | 3813203 | 2.0 | 1.0 | 1.5 | 0.7 | 2.4 | 1.2 | 135 | 1550 | 90 | 2130 | 580 | 1.5 | 1 | 6.289,00 | 7.483,91 | - | - | |
| RBM 2050-15E | 3813204 | 1.5 | 0.7 | 1.1 | 0.5 | 1.8 | 0.9 | 145 | 2050 | 95 | 2630 | 665 | 1.5 | 1 | 6.999,00 | 8.328,81 | |||
Select Attributes
Bending performance
- Max. bending performance in steel 400 N/mm²²
- Max. taper bending performance in steel 400 N/mm²
- Max. bending performance in stainless steel
- Max. taper bending performance in stainless steel
- Max. bending performance aluminium
- Max. taper bending performance in aluminium
- Min. bending diameter
Dimensions and weights
- Max. working width
- Top roller diameter
- Length approx.
- Weight approx.
Electrical Data
- Drive motor output
General
- VPE
Price
- excl. Tax
- incl. 19% Tax
Promotional price
- excl. Tax
- incl. 19% Tax
Productdetails
- For use in industry and trade
- Heavy and stable cast iron construction

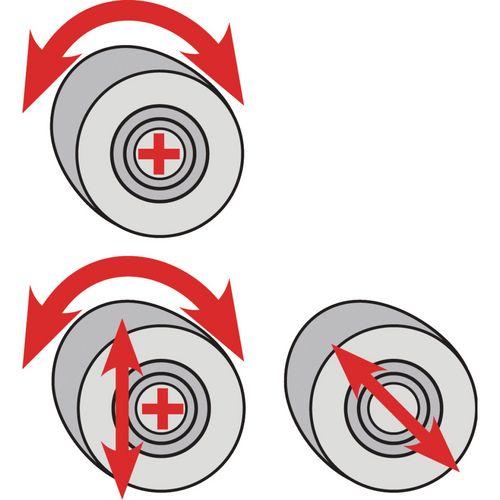

- Asymmetrical 3-roller system
- Upper roller swung out, thereby easy removal of the finished workpiece
- Easily adjustable upper and lower roller
- The foot control leaves both hands free for the material supply
- User-friendly
- Powerful 400 volt engine
- Optionally available: hardened rollers
Hints:
- When ordering, please specify the type of material to be processed!
- All accessories only possible ex works.
| Dimensions and weights | |
|---|---|
| Width/depth approx. | 700 mm |
| Height approx. | 1200 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
