| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |

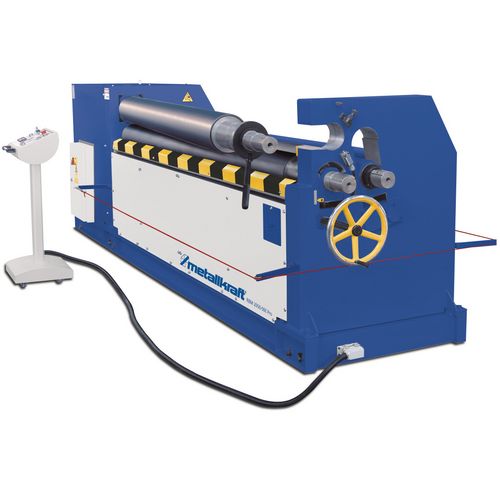

Motorized plate rolling machine
RBM E Pro
In heavy design with motorized delivery for plate thicknesses up to 6 mm
From 21.490,00
EUR excl. Tax / pc(s).
From 25.573,10
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| Bending performance | Dimensions and weights | Electrical Data | General | Price | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Max. pre-bending performance in steel 400 N/mm² (mm) | Max. bending performance in steel 400 N/mm²² (mm) | Max. taper bending performance in steel 400 N/mm² (mm) | Max. bending performance in stainless steel (mm) | Max. taper bending performance in stainless steel (mm) | Max. bending performance aluminium (mm) | Max. taper bending performance in aluminium (mm) | Min. bending diameter (mm) | Roller speed (m/min) | Max. working width (mm) | Top roller diameter (mm) | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Drive motor output (kW) | VPE | EUR excl. Tax | EUR incl. 19% Tax | |
| RBM 1550-60E Pro | 3813314 | 5.0 | 6.0 | 3.0 | 4.5 | 2.2 | 7.2 | 3.6 | 195 | 3.2 | 1550 | 130 | 3250 | 650 | 1020 | 1400 | 2,2 | 1 | 21.490,00 | 25.573,10 | |
| RBM 2050-50E Pro | 3813315 | 4.0 | 5.0 | 2.5 | 3.7 | 1.8 | 6 | 3 | 225 | 3.4 | 2050 | 150 | 3750 | 680 | 1040 | 1885 | 3,0 | 1 | 26.550,00 | 31.594,50 | |
| RBM 2050-60E Pro | 3813316 | 5.0 | 6.0 | 3.0 | 4.5 | 2.2 | 7.2 | 3.6 | 255 | 3.8 | 2050 | 170 | 3850 | 720 | 1050 | 2100 | 4,0 | 1 | 30.590,00 | 36.402,10 | |
| RBM 2550-40E Pro | 3813317 | 3.0 | 4.0 | 2.0 | 1.4 | 0.7 | 4.8 | 2.4 | 225 | 3.4 | 2550 | 150 | 4250 | 650 | 1020 | 2150 | 3,0 | 1 | 29.450,00 | 35.045,50 | |
| RBM 2550-60E Pro | 3813318 | 5.0 | 6.0 | 3.0 | 4.5 | 2.2 | 7.2 | 3.6 | 285 | 4.3 | 2550 | 190 | 4 – 700 | 950 | 1300 | 3400 | 4,0 | 1 | 39.190,00 | 46.636,10 | |
| RBM 3050-60E Pro | 3813319 | 5.0 | 6.0 | 3.0 | 4.5 | 2.2 | 7.2 | 3.6 | 330 | 5.0 | 3050 | 220 | 5200 | 1150 | 1400 | 6000 | 5.5 | 1 | 52.990,00 | 63.058,10 | |
Select Attributes
Bending performance
- Max. pre-bending performance in steel 400 N/mm²
- Max. bending performance in steel 400 N/mm²²
- Max. taper bending performance in steel 400 N/mm²
- Max. bending performance in stainless steel
- Max. taper bending performance in stainless steel
- Max. bending performance aluminium
- Max. taper bending performance in aluminium
- Min. bending diameter
- Roller speed
Dimensions and weights
- Max. working width
- Top roller diameter
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Drive motor output
General
- VPE
Price
- excl. Tax
- incl. 19% Tax
Productdetails
- Heavy steel welded construction
- Upper and pinch roller driven
- Motorized delivery of the side roller

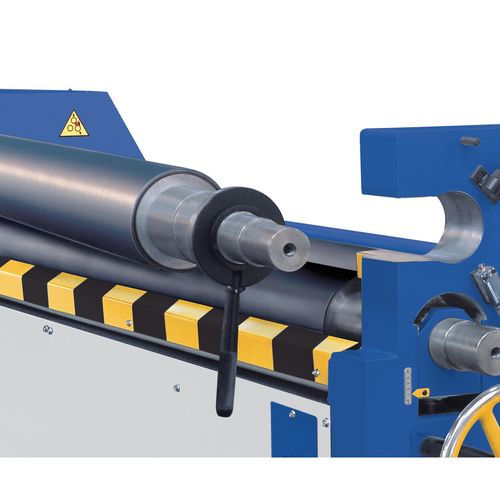

- Swing-out top roller
- Roller drive via powerful electric motor and gearbox
- Safety device Emergency line
- Mobile control panel
Room amenities:
- Swiveling top roller
Note:
- Please specify when ordering material to be processed!
- Other models on request
