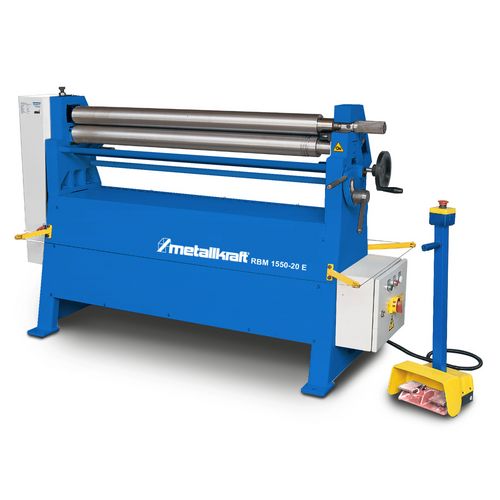

Motorized plate rolling machine
RBM 1550-20E
Asymmetrical with three rollers
6.289,00
EUR excl. Tax / pc(s).
7.483,91
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3813203
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For use in industry and trade
- Heavy and stable cast iron construction
- Asymmetrical 3-roller system
- Upper roller swung out, thereby easy removal of the finished workpiece
- Easily adjustable upper and lower roller
- The foot control leaves both hands free for the material supply
- User-friendly
- Powerful 400 volt engine
- Optionally available: hardened rollers
Hints:
- When ordering, please specify the type of material to be processed!
- All accessories only possible ex works.
| Bending performance | |
|---|---|
| Max. bending performance in steel 400 N/mm²² | 2.0 mm |
| Max. taper bending performance in steel 400 N/mm² | 1.0 mm |
| Max. bending performance in stainless steel | 1.5 mm |
| Max. taper bending performance in stainless steel | 0.7 mm |
| Max. bending performance aluminium | 2.4 mm |
| Max. taper bending performance in aluminium | 1.2 mm |
| Min. bending diameter | 135 mm |
| Roller speed | 6 m/min |
| Dimensions and weights | |
|---|---|
| Max. working width | 1550 mm |
| Top roller diameter | 90 mm |
| Length approx. | 2130 mm |
| Width/depth approx. | 700 mm |
| Height approx. | 1200 mm |
| Weight approx. | 580 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

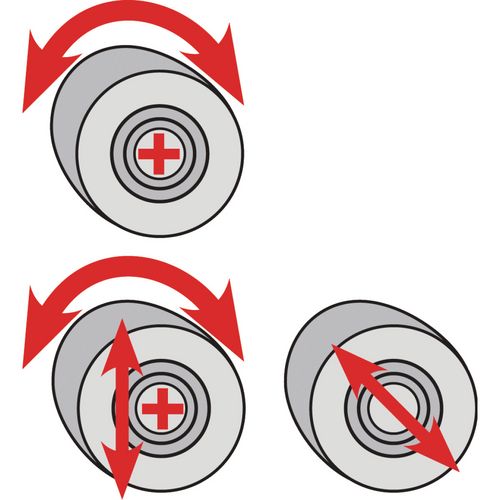

- Powered top and bottom rollers
- Possibility of conical bending
- Wire insert groove on lower and rear roller
| Top roller | driven |
| Bottom roller | driven |
| Conical bending | ✔ |
| Wire insert groove | on bottom and rear roller |
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
