    Productimage for HSBM 2020-20 SB
    Brandimage to Product HSBM 2020-20 SB

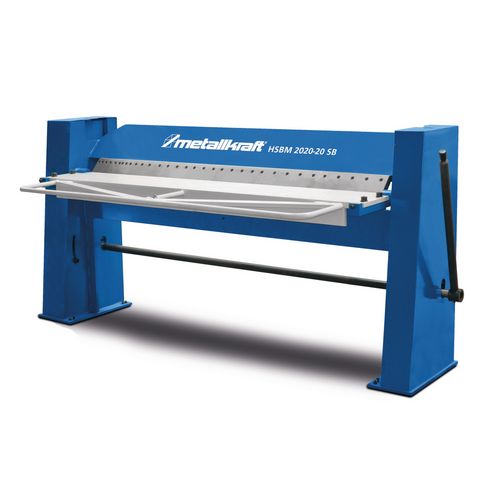

    Manual swing bending machine

    HSBM 2020-20 SB

    In heavy design with segmented upper tools

    5.850,00 EUR excl. Tax / pc(s).
    6.961,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    5.099,00 EUR excl. Tax / pc(s).
    6.067,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3772920

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Easy handling
    • segmented upper tools
    • Swivel bending function with secure clamping of the workpiece by preloading the upper beam
    • heavy, compact welded construction
    • For easy bending with exact adjustment of the bending angle by means of a stop with scale
    • particularly low maintenance


    segment breakdown


    • 25-30-35-40-45-75-100-150-200-200-270-400-400


    Note on technical data:


    Sheet thickness max .: Performance data based on material with tensile strength 400N / mm²; Bending capacity VA: factor 0.75; Bending capacity Alu: factor 1,2; Hardened top tools are required to bend stainless steel



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Max. working width2020 mm
    Max. passageway between top + bottom beam120 mm
    Max. bending angle135 °
    Segmentation25-30-35-40-45-75-100-150-200-200-270-400-400 mm
    VPE1
    Bending capacity
    400 N/mm²2.0 mm
    Stainless steel1.25 mm
    Aluminium2.4 mm
    Dimensions and weights
    Length approx.2500 mm
    Width/depth approx.710 mm
    Height approx.1500 mm
    Weight approx.1020 kg
    Unit: pc(s).
    Packaging unit: 1
