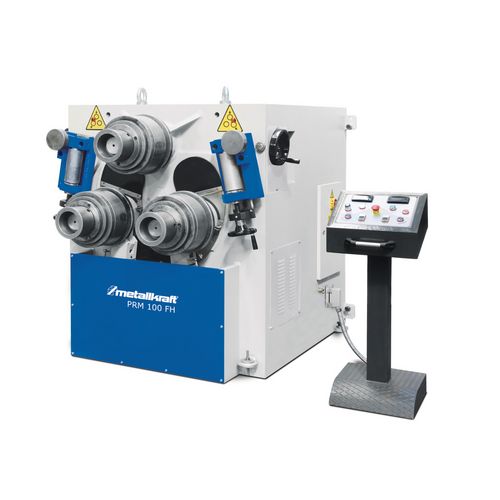

Hydraulic ring bending machine
PRM 100 FH
Can be used horizontally and vertically for profiles, tubes and solid material
41.590,00
EUR excl. Tax / pc(s).
49.492,10 EUR incl. 19% Tax / pc(s).
49.492,10 EUR incl. 19% Tax / pc(s).
Promotional price *
36.999,00 EUR excl. Tax / pc(s).44.028,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 3812100
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy welded steel construction

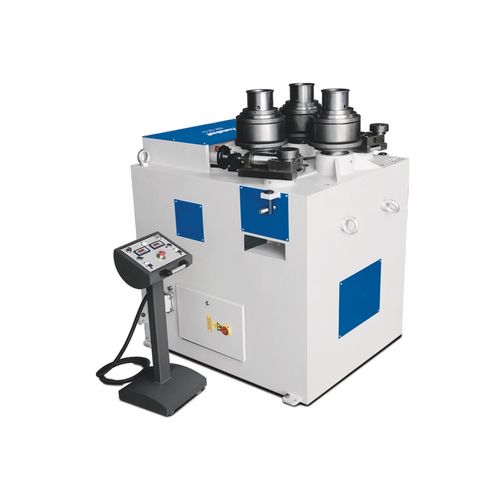

- Horizontal and vertical work possibility

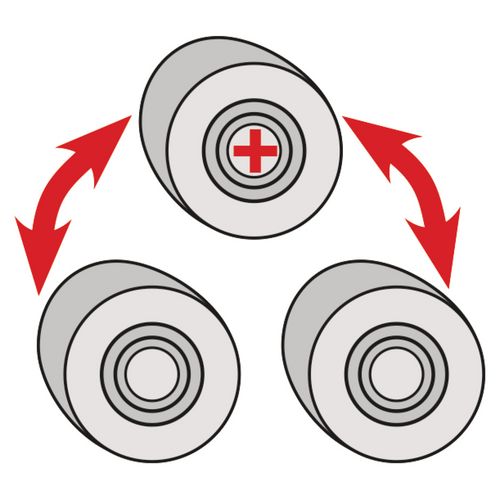

- All three rollers driven by hydraulic motor and planetary gear
- Rolls are hardened
- Hydraulic delivery via two lower rollers

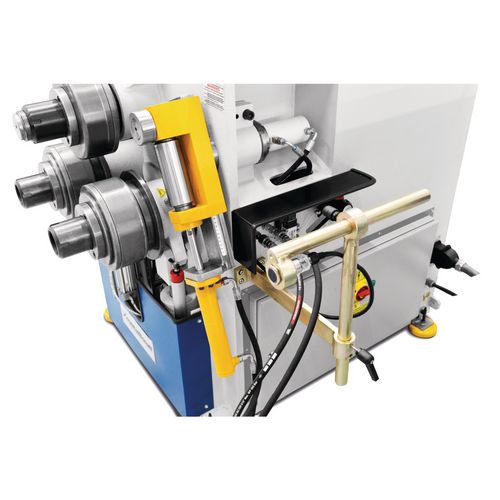

- Lateral mechanical straightening rollers, infinitely adjustable
- Separate control panel with foot control and 2 digital displays
Optional accessories:

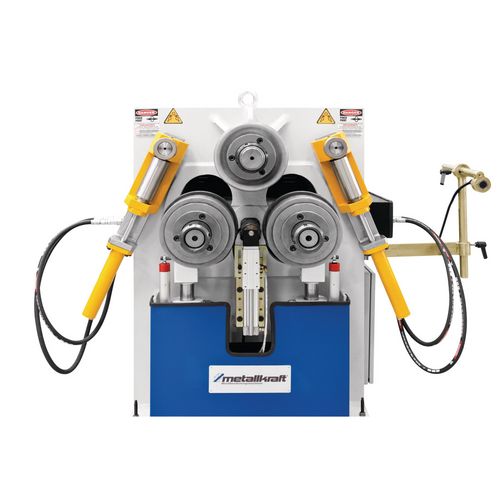

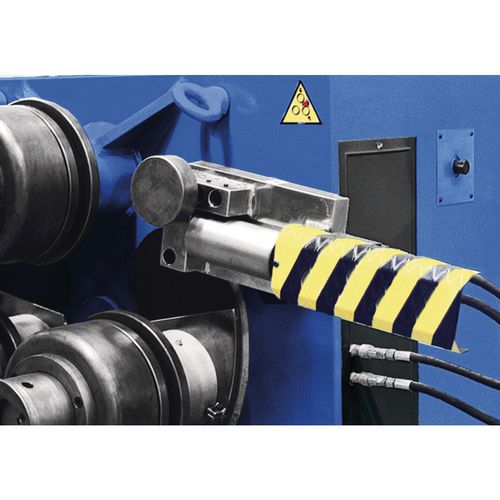

- Hydraulic straightening rollers
- Stepless adjustable rolling speed
- Tube bending rolls
- Angle bending rolls
- Special straightening rollers
- Profile bending rolls
- Plastic rollers for soft materials
- NC control
Note:
- Please specify when ordering material to be edited!
- Bending rollers on request
- Optionally, the machine can be equipped with bending rollers especially for their needs
- Also atypical sizes can be made on request
| Bending performances profile type optional | |
|---|---|
| Explanations for bending performance, profile type optional | The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7 |
| Bending performances profile type standard | |
|---|---|
| Square material dimensions [1] | 60 mm |
| Square material min. bending Ø [1] | 750 mm |
| Square material dimensions [2] | 15 mm |
| Square material min. bending Ø [2] | 400 mm |
| Flat material light axis dimensions bending Ø [1] | 200 x 30 mm |
| Flat material light axis min. bending Ø [1] | 1200 mm |
| Flat material light axis dimensions bending Ø [2] | 160 x 35 mm |
| Flat material light axis min. bending Ø [2] | 400 mm |
| Flat material light axis dimensions bending Ø [3] | 80 x 5 mm |
| Flat material light axis min. bending Ø [3] | 400 mm |
| Flat material heavy axis dimensions bending Ø [1] | 100 x 20 mm |
| Flat material heavy axis min. bending Ø [1] | 800 mm |
| Flat material heavy axis dimensions bending Ø [2] | 30 x 10 mm |
| Flat material heavy axis min. bending Ø [2] | 400 mm |
| UPN profile top rib dimensions [1] | 100 x 11 mm |
| T profile top rib min. bending Ø [1] | 1000 mm |
| UPN profile top rib dimensions [2] | 30 x 4 mm |
| T profile top rib min. bending Ø [2] | 400 mm |
| Explanation for T profile rib above | Additional spacers may be required |
| UPN profile outside rib dimensions [1] | 100 x 11 mm |
| T profile outside rib min. bending Ø [1] | 1000 mm |
| UPN profile outside rib dimensions [2] | 30 x 4 mm |
| T profile outside rib min. bending Ø [2] | 400 mm |
| UPN profile inside rib dimensions [1] | 90 x 10 mm |
| T profile inside rib min. bending Ø [1] | 1000 mm |
| UPN profile inside rib dimensions [2] | 30 x 4 mm |
| T profile inside rib min. bending Ø [2] | 400 mm |
| UPN profile outside leg dimensions [1] | UPN 180 |
| UPN profile outside leg min. bending Ø [1] | 900 mm |
| UPN profile outside leg dimensions [2] | UPN 30 |
| UPN profile outside leg min. bending Ø [2] | 400 mm |
| UPN profile inside leg dimensions [1] | UPN 180 |
| UPN profile inside leg min. bending Ø [1] | 1000 mm |
| UPN profile inside leg dimensions [2] | UPN 30 |
| Inside leg min. bending Ø [2] | 400 mm |
| Explanations for bending performance, profile type standard | The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7 |
| Dimensions and weights | |
|---|---|
| Length approx. | 2000 mm |
| Width/depth approx. | 1450 mm |
| Height approx. | 1700 mm |
| Weight approx. | 3650 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 7,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Shaft diameter top | 100 mm |
| Shaft diameter bottom | 100 mm |
| Roller diameter top | 315 mm |
| Roller diameter bottom | 315 mm |
| Speed | 7 m/min |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Standard bending rolls
- mobile controller
- one digital display per lower feed roller
- manual straightening rollers
