| Max. turning diameter | 305 mm |
| Speeds | 250 – 850, 430 – 1450, 950 – 3200 min-¹ |
| Speed stages | 3 |
| Speed control | Electronically variable |
| Tailstock thread | metric |
| Tailstock stroke | 90 mm |
| Bearing distance | 95.5 mm |
| Spindle cone | MT2 |
| Partial installation | 24 Steps |
| Clamping diameter tool rest | 25.4 mm |
| VPE | 1 |

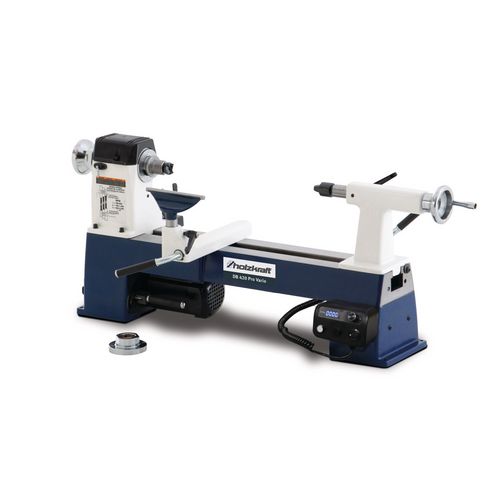

Woodturning lathe
DB 420 Pro Vario
Solid bench lathe with variable speed adjustment
669,00
EUR excl. Tax / pc(s).
796,11
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5822042
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Solid cast iron bench bed for extremely smooth running
- ASR run-off protection groove for maximum safety when fastening clamping devices
- Comfortable working thanks to infinitely variable speed adjustment
- Equipped with speed-controlled DC brushless motor
- Flexible working thanks to mobile control box with magnetic holder, can be positioned as required
- Digital speed display and changeover between clockwise and counter-clockwise rotation via the control box
- Practical 24-step spindle part adjustment for precise positioning of e.g. drill holes or milling operations
- Can also be used as a stand-alone machine thanks to optional base frame
- ASR run-off protection groove for maximum safety when fastening clamping devices
- Comfortable working thanks to infinitely variable speed adjustment via frequency converter
- Robust tailstock with trapezoidal thread and 115 mm quill travel
- Digital speed display and changeover between clockwise and counter-clockwise rotation via the control box
- Practical 24-step spindle part adjustment for precise positioning of e.g. drill holes or milled holes
| Dimensions and weights | |
|---|---|
| Length approx. | 950 mm |
| Width/depth approx. | 330 mm |
| Height approx. | 410 mm |
| Weight approx. | 43 kg |
| Electrical Data | |
|---|---|
| Motor power output | 0.6 kW |
| Motor power input | 0.7 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Tool rest 200 mm
- Face plate 80 mm
- Four-point driver
- center punch
- long ejector rod
- Short ejector rod
- Clamping wrench 46 mm
- Clamping wrench 38 mm
- Allen key (2.5mm, 3mm, 4mm, 5mm)
| Right-left run | ✔ |
| Frequency inverter | ✔ |
| Mobile control panel | ✔ |
