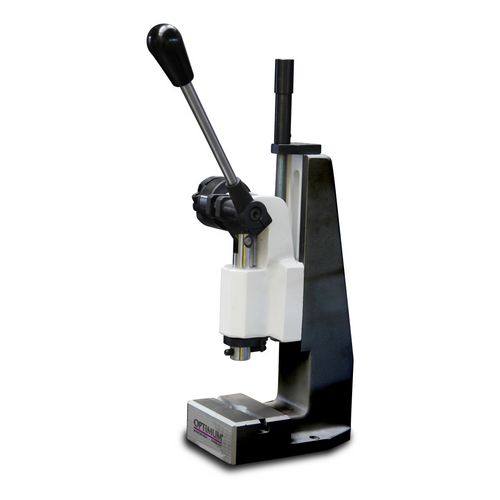

    Productimage for PD5
    Brandimage to Product PD5

    Manual toggle press

    PD5

    319,00 EUR excl. Tax / pc(s).
    379,61 EUR incl. 19% Tax / pc(s).
    Promotional price *
    299,00 EUR excl. Tax / pc(s).
    355,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2026 in Germany.

    Art.-No. 3359050

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Adjustable offset
    • Hardened and ground spindle
    • Long spindle guide
    • High force at the end of stroke
    • Honed ram guide and ground rams ensure a long service life and precise guidance
    • Quick changeover thanks to simple and safe adjustment of the working height
    • Ground press tables allow reproducible positioning of your tools
    • Locating holes in the ram and table plate for precise alignment of the tools
    • Support table with T-slots for attaching workpiece clamping fixtures
    • PD5 with locking function
    • PD5 and PD8 with spindle for height adjustment



    Pressure force5 kN
    Piston stroke40 mm
    Piston Travel from to65 – 180 mm
    Work table number of T-slots16
    Work table T-slot size7.5 mm
    Maximum force5 kN
    Distance between press frame and press ram80 mm
    Bore spindle sleeve10 mm
    Press ram travel30 mm
    Press head travel range65 – 180 mm
    Table length115 mm
    Table width80 mm
    T-slot size16 mm
    VPE1
    Dimensions and weights
    Work table length110 mm
    Work table width80 mm
    Reach65 mm
    Diameter piston rod10 mm
    Length approx.190 mm
    Width/depth approx.115 mm
    Height approx.507 mm
    Weight approx.13 kg
    Unit: pc(s).
    Packaging unit: 1
