    Edge sanding machine

    KSO 1505

    With swiveling sanding unit, oscillating sanding belt and sanding sleeve device

    2.099,00 EUR excl. Tax / pc(s).
    2.497,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.999,00 EUR excl. Tax / pc(s).
    2.378,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2026 in Germany.

    Art.-No. 5368155

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

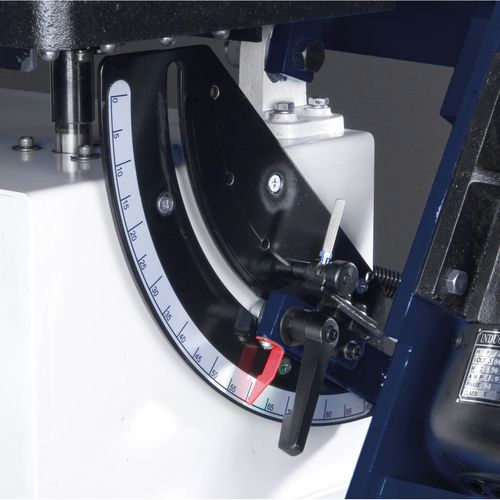

    • Infinitely adjustable sanding unit (0 - 90°) for vertical and horizontal sanding
    • Oscillating sanding belt for better sanding results and a longer service life of the sanding belt
    • Quick and easy sanding belt change via quick-release system
    • Sanding pad with graphite coating as standard for a longer service life of the sanding belt
    • Cast iron work table with T-slot, adjustable via handwheel

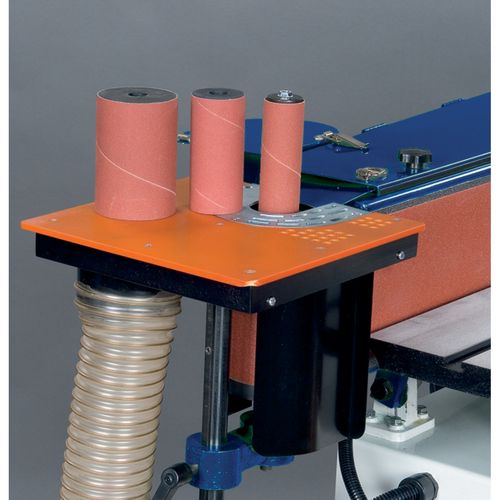

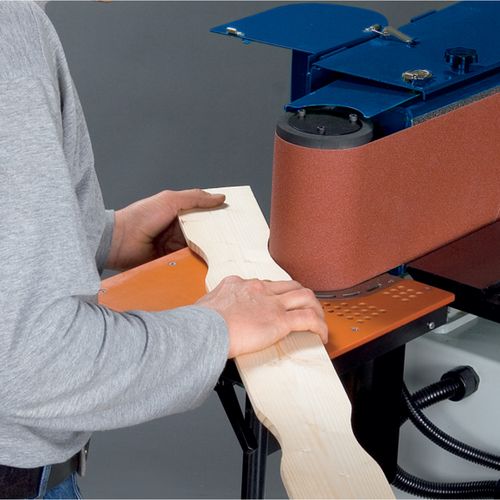

    • Including lateral sanding sleeve device for sanding curves and radii
    • Two extraction sockets Ø 100 mm


    You will receive the 3-year Stürmer warranty for this item when you register online.



    Dimensions and weights
    Length approx.1515 mm
    Width/depth approx.550 mm
    Height approx.1150 mm
    Weight approx.207 kg
    Electrical Data
    Output power (motor power)2.2 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter100 mm
    Sanding machine
    Sanding belt length2750 mm
    Sanding belt width150 mm
    Circumferential belt speed(s)16 m/s
    Sanding surface length1010 mm
    Sanding surface width190 mm
    Max. sanding height170 mm
    Pivoting0 – 90 °
    Oscillation stroke15 mm
    Work top(s)
    Work table length900 mm
    Work table width305 mm
    Work table height adjustment120 mm
    Workpiece
    Max. width1010 mm
    Max. height150 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • 1x sanding belt 2750x 150mm grit 80
    • 1x sanding sleeve Ø38mm grit 80
    • 1x sanding sleeve Ø50mm grain 80
    • 1x sanding sleeve Ø75mm grain 80
