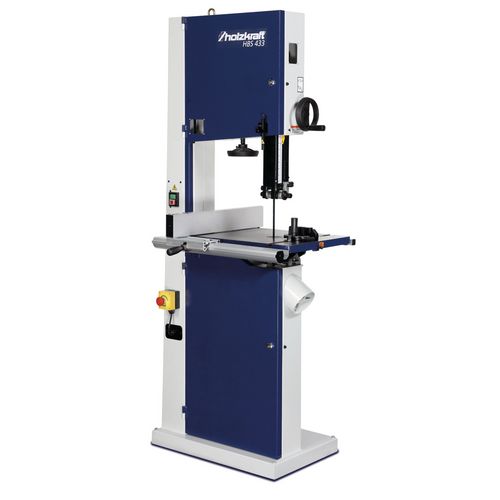

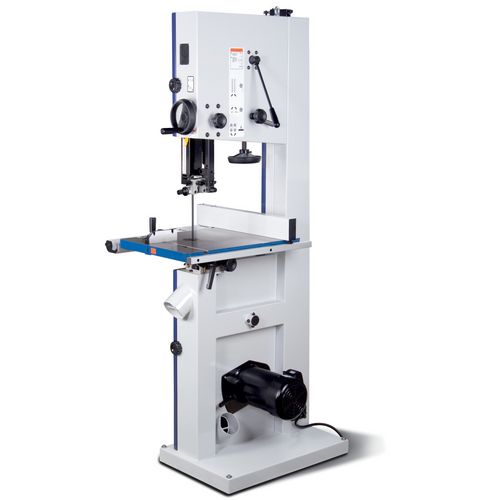

Woodbandsaw
HBS 433 (IE3)
Precision version for the ambitious craftsman
2.429,00
EUR excl. Tax / pc(s).
2.890,51
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5150043
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Particularly quiet and precise run thanks to a torsion-free machine housing and a solid steel sheet substructure
- Large one-piece cast iron saw table, with a precisely ground and polished surface
- Comfortable laser device for cutting line marking

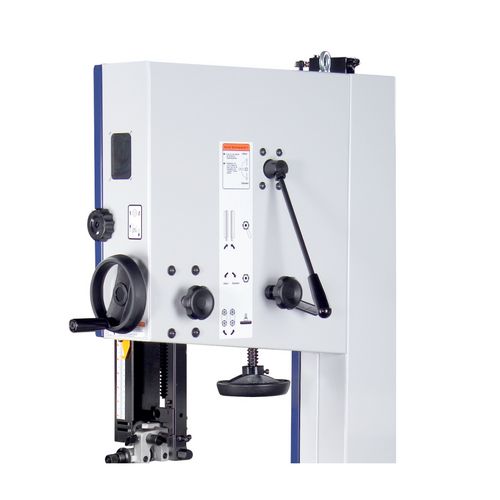

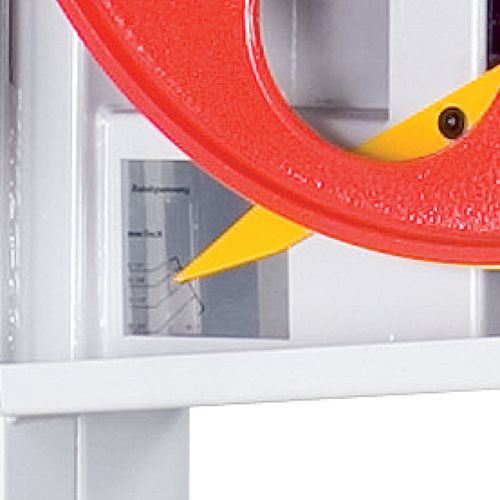

- Rapid saw blade tension via eccentric lever on the back of the machine
- Standard with two speeds

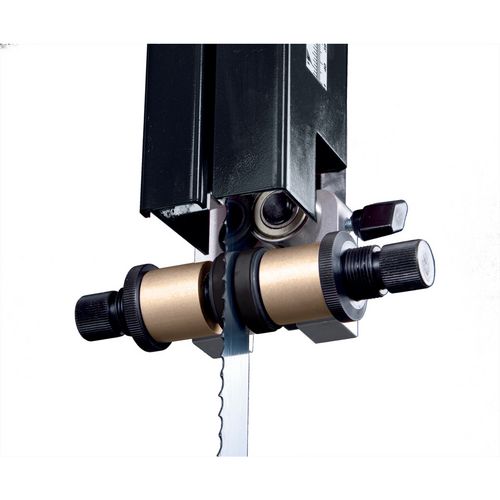

- Precise 3-roller saw band guides, standard above and below
- Fast cutting height adjustment via knob and rack with millimeter scale

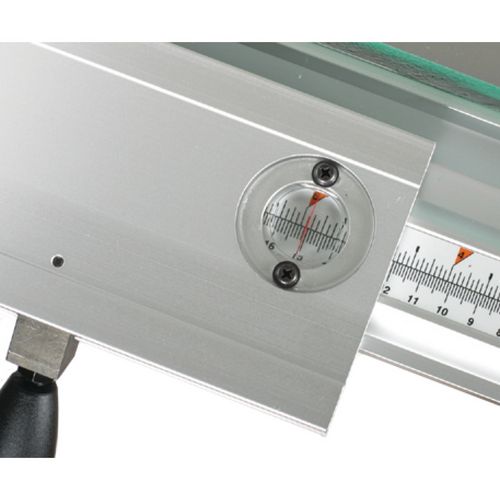

- Smooth-running aluminum rip fence with eccentric quick clamping and magnifying glass
- Standard miter fence, adjustable by 60 ° on both sides

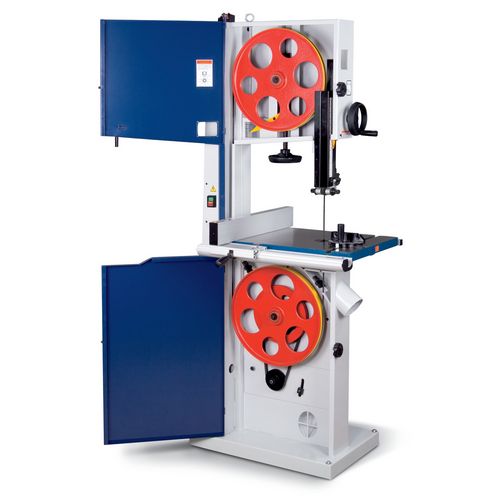

- Safety switch for automatic shutdown when the door is opened
| Cutting ranges | |
|---|---|
| Max. cutting height 90° | 270 mm |
| Max. cutting width with stop | 370 mm |
| Max. cutting width without stop | 410 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 820 mm |
| Width/depth approx. | 800 mm |
| Height approx. | 1852 mm |
| Weight approx. | 158.5 kg |
| Electrical Data | |
|---|---|
| Delivery power | 1,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 2 x 120 mm |
| Saw band | |
|---|---|
| Speed(s) | 900 / 450 m/min |
| Length | 3345 mm |
| Work top(s) | |
|---|---|
| Length | 610 mm |
| Width | 431 mm |
| Height | 950 mm |

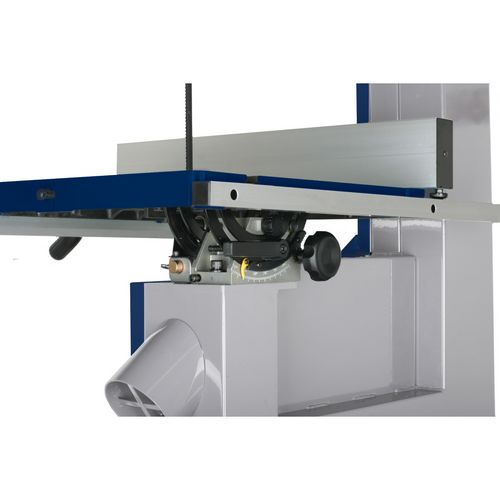

| Pivot | -10 – 45 ° |
| Pivot explanation | For safety reasons, a holding device / stop must be fitted from 20° to prevent the wood from slipping! |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Angle stop ±60°
- Laser device for marking the cutting line
