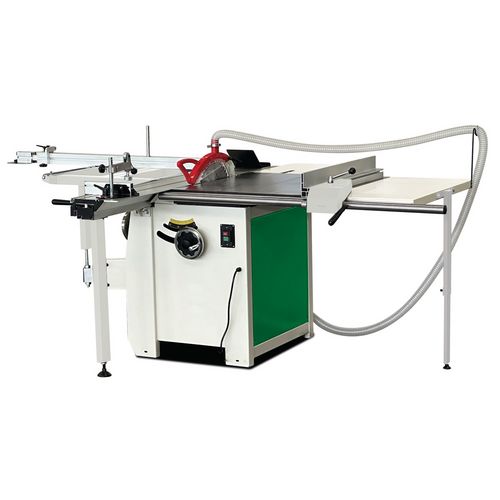

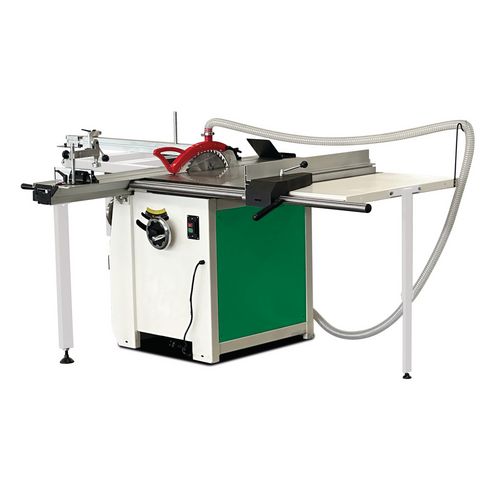

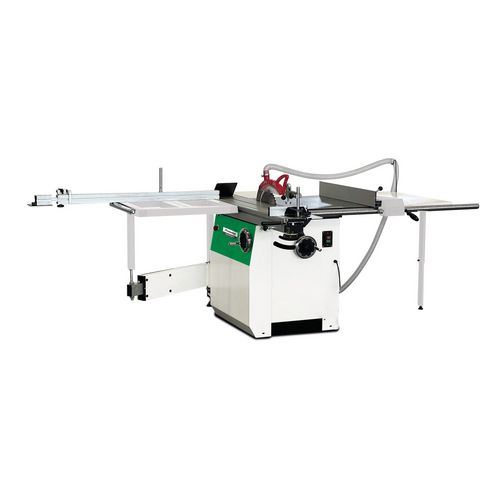

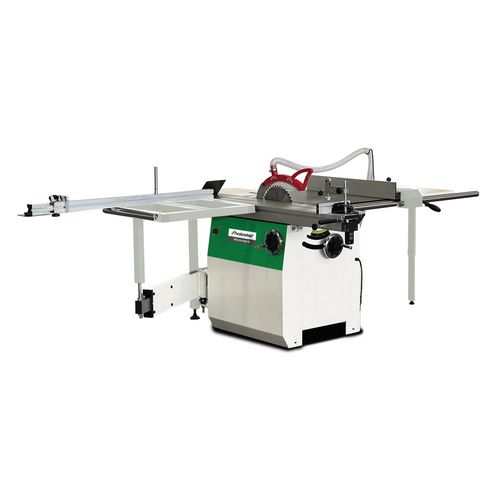

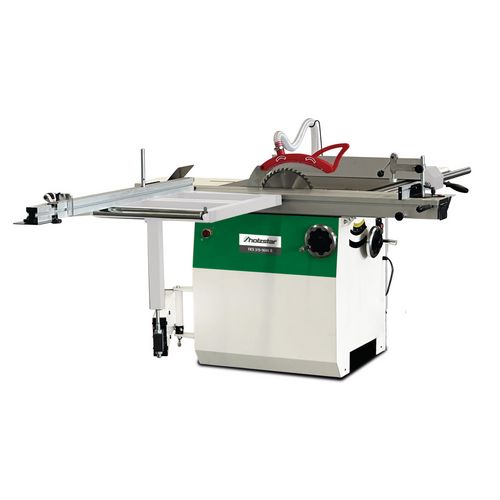

Sliding table saw
FKS 315-2600 B
with scoring device
3.125,00
EUR excl. Tax / pc(s).
3.718,75 EUR incl. 19% Tax / pc(s).
3.718,75 EUR incl. 19% Tax / pc(s).
Promotional price *
2.799,00 EUR excl. Tax / pc(s).3.330,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.
Art.-No. 5902043
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Telescopic fence that can be swiveled from -45° to +45° with finely adjustable stop flap
- Robust and precise design with sliding carriage
- The cast iron work table enables low-vibration work
- Saw blade height adjustment via a handwheel
- Saw blade tilt adjustable from 90 to 45° via handwheel with scale
- Double-suspended saw unit guarantees vibration-free and precise work
- Solid outrigger table with roller and telescopic arm for maximum stability
- Mitre fence and hold-down device can be moved over the entire length of the carriage
- Large aluminum parallel fence on round bar guide
- Powerful drive motor for constant cutting speed, even at a cutting height of 100 mm
- Large work table and standard table extension for cutting widths up to 1220 mm
- Telescopic fence that can be swiveled from -45° to +45°
- Robust and precise design with sliding carriage
- The cast iron work table enables low-vibration work
- Saw blade tilt from 90° to 45
- Double-suspended saw unit
- Mitre fence and hold-down device can be moved over the entire length of the carriage
- Large work table and standard table extension for cutting widths up to 1220 mm
| Circular saw unit | |
|---|---|
| Max. cutting width with rip fence | 900 mm |
| Max. cross cut width left from saw blade | 2430 mm |
| Trimming length | 2600 mm |
| Saw blade angle | 90 45 ° |
| Max. cutting height 90° | 100 mm |
| Max. cutting height 45° | 80 mm |
| (Main) saw blade diameter | 315 mm |
| (Main) saw blade speed | 4500 min¯¹ |
| Dimensions and weights | |
|---|---|
| Length approx. | 5700 mm |
| Width/depth approx. | 3850 mm |
| Height approx. | 1300 mm |
| Weight approx. | 311 kg |
| Electrical Data | |
|---|---|
| Absorbed power drive motor | 3,0 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter bottom | 98 mm |
| Saw blade protection extraction port diameter | 40 mm |
| Noise emission | |
|---|---|
| Sound pressure level | 85 dB(A) |
| Pre-scoring unit | |
|---|---|
| Diameter scoring saw blade | 100 mm |
| Scoring saw blade speed | 8500 min¯¹ |
| Sliding carriage and table | |
|---|---|
| Sliding carriage length | 1600 mm |
| Sliding carriage width | 270 mm |
| Table length | 1300 mm |
| Table width | 1260 mm |
| Work height | 865 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
