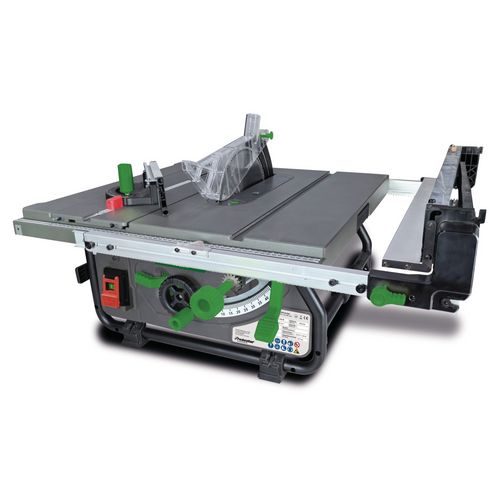

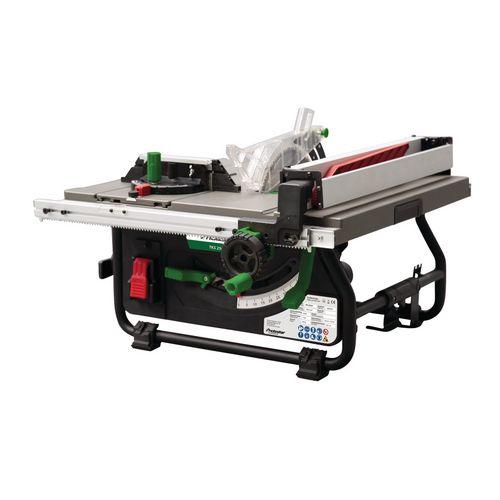

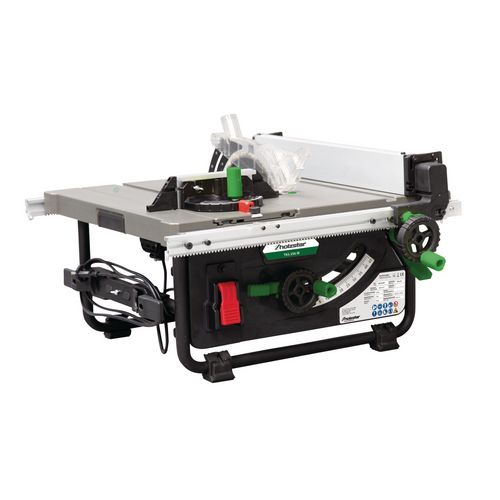

    Circular table saw

    TKS 256 M

    Compact circular table saw for versatile applications

    445,00 EUR excl. Tax / pc(s).
    529,55 EUR incl. 19% Tax / pc(s).
    Promotional price *
    399,00 EUR excl. Tax / pc(s).
    474,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2026 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5902256

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Powerful 1800 W motor for a cutting height of up to 80 mm
    • Easy to transport thanks to the low weight of just 20 kg

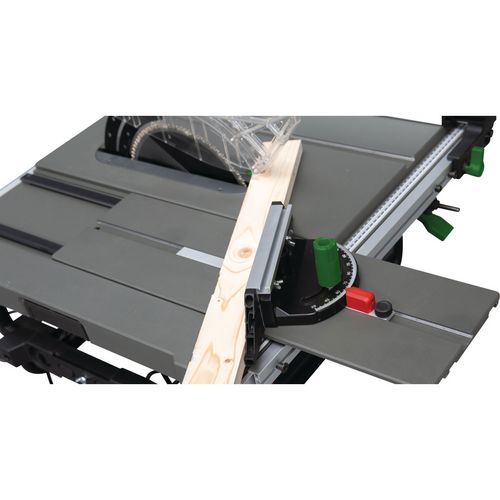

    • Integrated sliding carriage with mitre fence and 45° inclination of the saw blade possible

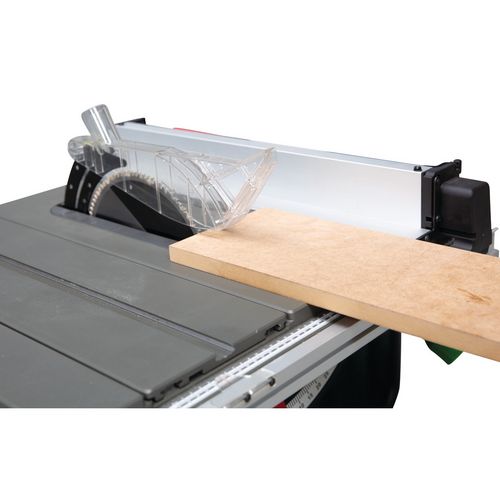

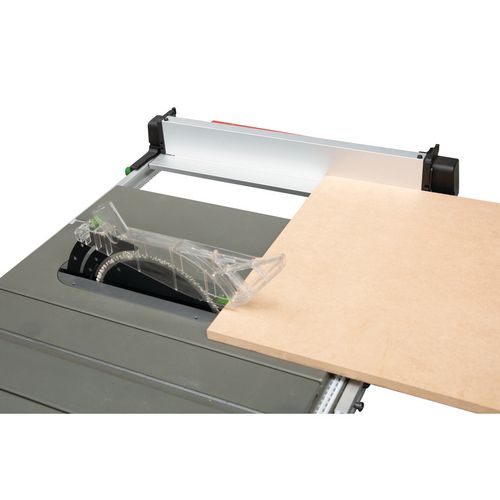

    • Precise adjustment of the rip fence via toothed rack for a cutting width of up to 620 mm

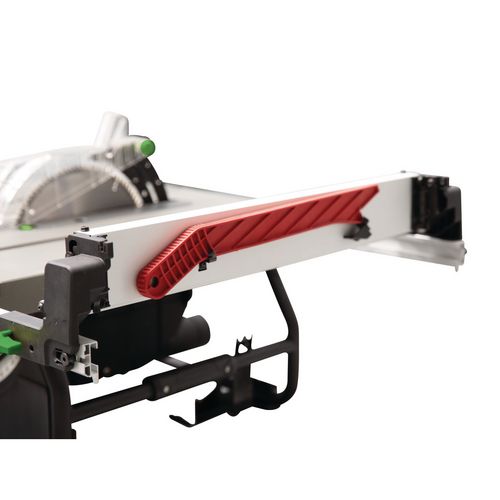

    • Folding rip fence for workpiece support and stop for thin workpieces

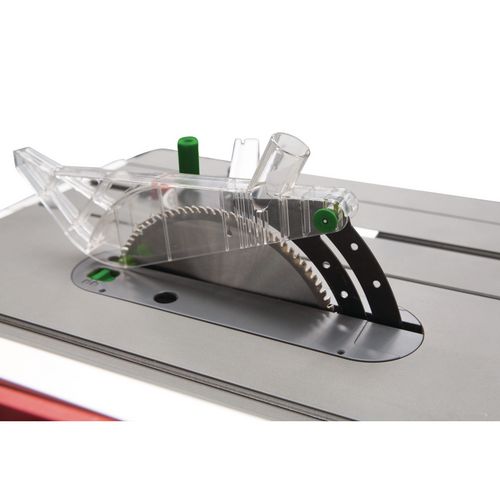

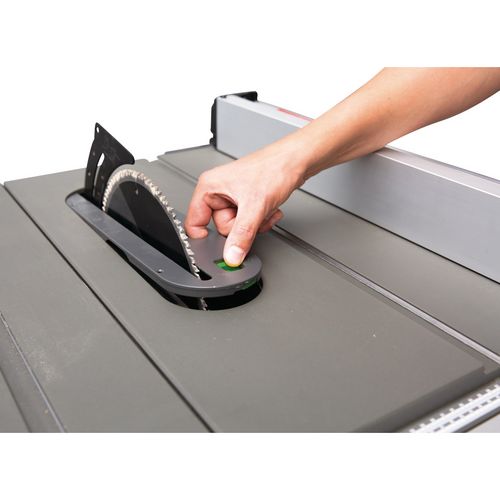

    • Tool-free change of the saw blade guard and table insert



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Circular saw unit
    Max. cutting width with rip fence620 mm
    Max. cross cut width left from saw blade400 mm
    Saw blade angle90 45 °
    Max. cutting height 90°80 mm
    Max. cutting height 45°55 mm
    (Main) saw blade diameter255 mm
    Diameter saw blade bore30 mm
    (Main) saw blade speed6000 min¯¹
    Dimensions and weights
    Length approx.630 mm
    Width/depth approx.649 mm
    Height approx.329 mm
    Weight approx.20 kg
    Electrical Data
    Absorbed power drive motor1,8 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter bottom63,5 mm
    Saw blade protection extraction port diameter35 mm
    Noise emission
    Sound pressure level95 dB(A)
    Sliding carriage and table
    Table length630 mm
    Table width587 mm
    Work height330 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1



  • Sägeblatt 255 x 30 x 3,0 mm 48Z
  • Sägehaube
  • Parallelanschlag
  • Winkelanschlag

    •

    Saw rip fence✔
    StopsAngle stop
    Saw blade cover✔
