    Brandimage to Product ASA 11 AFB

    Rohluftabsauganlage

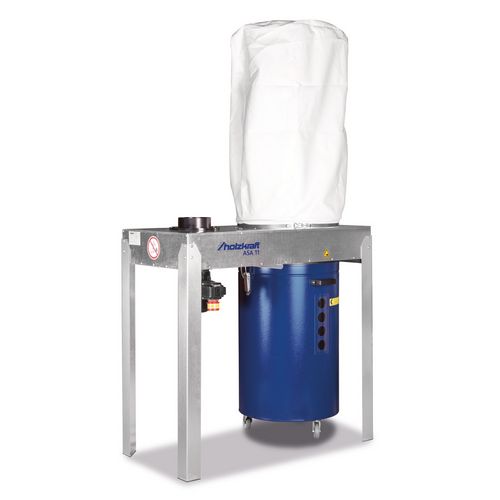

    ASA 11 AFB

    Stationary model with large chip collection volume in a small space

    2.089,00 EUR excl. Tax / pc(s).
    2.485,91 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.969,00 EUR excl. Tax / pc(s).
    2.343,11 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Art.-No. 5133210

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Universally applicable also for plastic, metal, glass, styrofoam, paper and the like
    • Particularly robust construction
    • Housing made of galvanized sheet steel
    • Chip drums are powder coated
    • Paddle wheel fan for increased suction power
    • Significantly reduced dust content due to double-woven fine filter bag
    • Extractors comply with dust class L
    • Basic units are pre-assembled in modular design
    • For large systems only short installation times
    • Top value for money
    • Short assembly times thanks to modular design



    Dimensions and weights
    Chip collection volume175 l
    Extraction duct inlet outside nominal width160 mm
    Length approx.1149 mm
    Width/depth approx.578 mm
    Height approx.2115 mm
    Weight approx.74 kg
    Electrical Data
    Suction motor efficiency classIE3
    Drive motor output2,2 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Filter
    Filter surface area2.2 m²
    Noise emission
    Max. sound pressure level82 dB(A)
    Volume flow
    Rated volume flow1300 m³/h
    VPE1
    Unit: pc(s).
    Packaging unit: 1

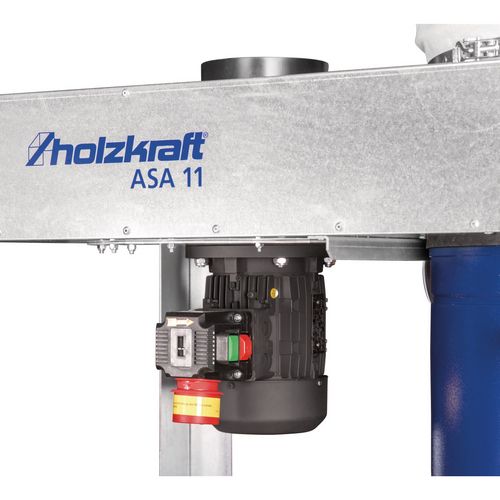

    • Plant body with mounted fan unit
    • 1 - 6 filling container / suction unit with metal impeller
    • Star-delta switch from 5.5 kW motor (ASA 51 AFB / ASA 61 AFB)
