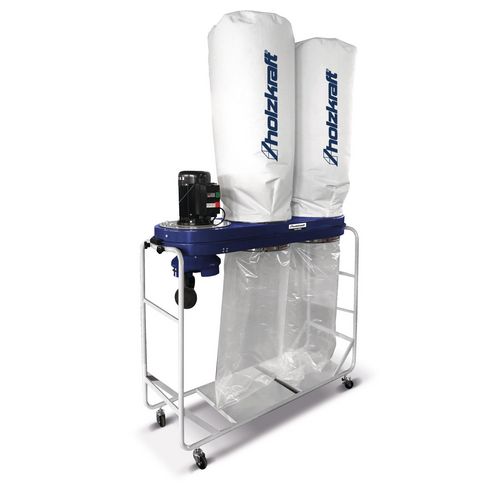

    Chip extractor

    ASA 4303

    mobile, with 180° rotatable suction unit

    875,00 EUR excl. Tax / pc(s).
    1.041,25 EUR incl. 19% Tax / pc(s).
    Promotional price *
    739,00 EUR excl. Tax / pc(s).
    879,41 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5128433

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • For milling, planing and sawdust (not suitable for dust)
    • 180° rotatable suction unit enables suction routing from below or above
    • Stable fan wheel made of metal
    • Standard with high-quality chassis for better stability and easy manoeuvring
    • Quick-release fasteners for filter and chip sack
    • Fine filter bag double woven



    • For milling, planing and sawdust
    • High-quality, stable chassis for easy manoeuvring
    • Fine filter bag double woven



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Chip collection volume2 x 215 l
    Extraction duct inlet outside nominal width260 mm
    Extraction duct outlet outside nominal width2 x 100, 2 x 120 mm
    Length approx.1700 mm
    Width/depth approx.600 mm
    Height approx.2400 mm
    Weight approx.69 kg
    Electrical Data
    Motor speed2950 min¯¹
    Motor input3.8 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Filter
    Filter surface area2 x 2.4 m²
    Noise emission
    Max. sound pressure level89.9 dB(A)
    Volume flow
    Max. negative pressure2000 Pa
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Fine filter bag, two chip bags
