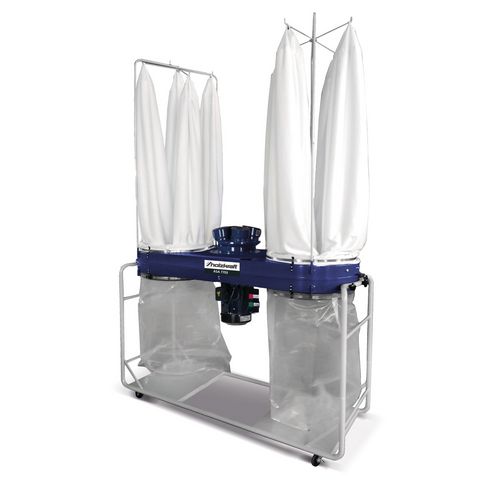

    Chip extractor

    ASA 7703

    mobile, with 180° rotatable suction unit

    1.359,00 EUR excl. Tax / pc(s).
    1.617,21 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.099,00 EUR excl. Tax / pc(s).
    1.307,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Art.-No. 5128773

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • For milling, planing and sawdust (not suitable for dust)

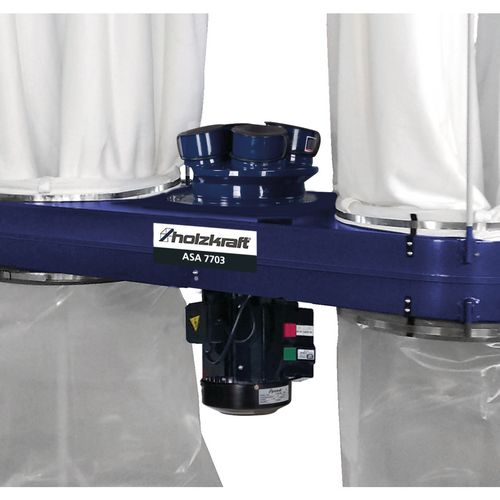

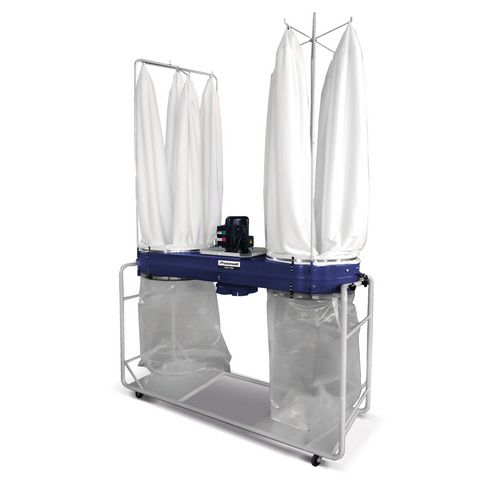

    • 180° rotatable suction unit enables suction routing from below or above
    • Stable fan wheel made of metal
    • Standard with high-quality chassis for better stability and easy manoeuvring
    • Quick-release fasteners for filter and chip sack



    • For milling, planing and sawdust
    • High-quality, stable chassis for easy manoeuvring



    Dimensions and weights
    Chip collection volume2 x 290 l
    Extraction duct inlet outside nominal width260 mm
    Extraction duct outlet outside nominal width3 x 120, 1 x 100 mm
    Length approx.1900 mm
    Width/depth approx.670 mm
    Height approx.2800 mm
    Weight approx.88 kg
    Electrical Data
    Motor speed2950 min¯¹
    Motor input4,8 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Filter
    Filter surface area2 x 5.98 m²
    Noise emission
    Max. sound pressure level98.3 dB(A)
    Volume flow
    Rated volume flow7700 m³/h
    Max. negative pressure2800 Pa
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Standard filter bag, two chip bags
