Paint fume extraction

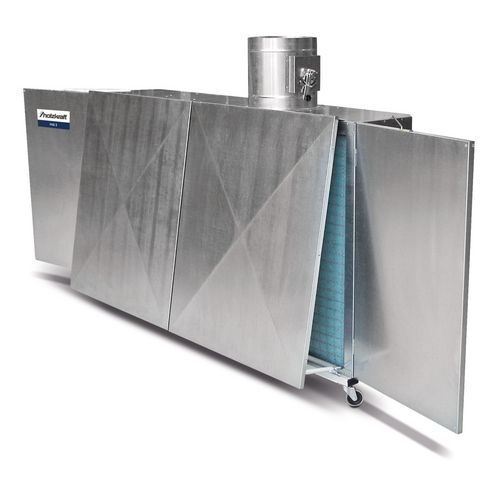

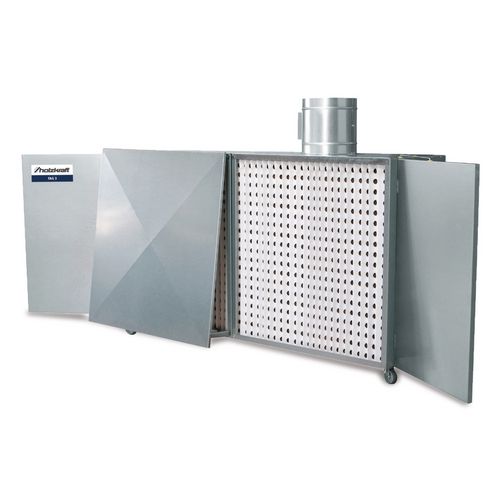

FAG 3

For extracting toxic, unhealthy fumes at painting workplaces

5.369,00 EUR excl. Tax / pc(s).
6.389,11 EUR incl. 19% Tax / pc(s).
Promotional price *
4.759,00 EUR excl. Tax / pc(s).
5.663,21 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 29.02.2024 in Germany.

Art.-No. 5134003

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Ideal in woodworking plants, in joineries / carpentry stores and general trades
    • Highly efficient air purification with high degree of separation
    • Mobile device for use in different places in the workshop
    • Easy handling
    • Certified for ATEX Zone 2
    • Long filter service life
    • Delivered ready to plug in



    Dimensions and weights
    Length max. approx.2971 mm
    Width/depth max. approx.1215 mm
    Extraction duct outlet outside nominal width300 mm
    Length approx.1912 mm
    Width/depth approx.944 mm
    Height approx.1405 mm
    Weight approx.250 kg
    Electrical Data
    Motor speed950 / 1440 min¯¹
    Drive motor output0.75 / 2.1 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Filter
    Filter surface area2.0 m²
    Noise emission
    Max. sound pressure level67 / 72 dB(A)
    Volume flow
    Max. negative pressure400 / 500 Pa
    VPE1
    Unit: pc(s).
    Packaging unit: 1
