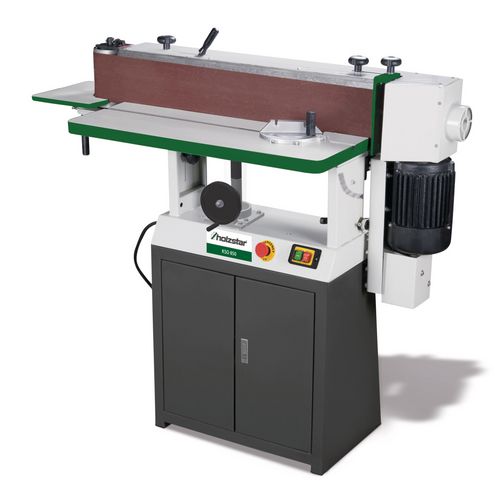

Edge sanding machine

KSO

Swiveling sanding unit and oscillating sanding belt

From 1.439,00 EUR excl. Tax / pc(s).
From 1.712,41 EUR incl. 19% Tax / pc(s).
Promotional price *
From 1.149,00 EUR excl. Tax / pc(s).
From 1.367,31 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 29.02.2024 in Germany.

Are you interested in this product?
  • Put a request
  • Find Trader
  • Variations

    Electrical DataGeneral Price Promotional price *
    TitleArt.-No.Supply voltage (V)VPE EUR excl. TaxEUR incl. 19% TaxEUR excl. TaxEUR incl. 19% Tax
    KSO 850 (400V)590085040011.439,001.712,411.149,001.367,31
    KSO 850 (230 V)590085123011.439,001.712,411.149,001.367,31
    Select Attributes
    Electrical Data
    General
    Price
    Promotional price

    Productdetails

    • With oscillating sanding belt for a good removal rate, a clean sanding pattern and a longer service life of the sanding belt
    • With height-adjustable sanding table
    • Standard with -45 ° to + 45 ° infinitely adjustable miter and workpiece stop
    • Infinitely tiltable sanding unit (0 ° -90 °) for vertical and horizontal sanding

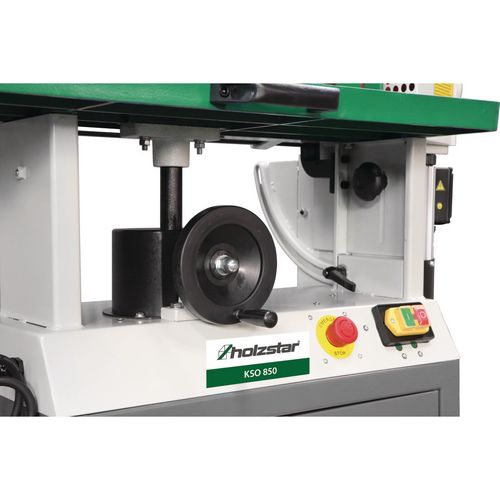

    • Table height adjustment by handwheel
    • Robust gray cast iron work table with T-slots, stable machine stand when working
    • With height-adjustable additional table for contour sanding
    • Quick and easy sanding belt change via quick clamping system
    • Spring-loaded clamping device for a uniform belt tension
    • Sanding sole with graphite coating as standard
    • Extraction nozzle Ø 100 mm
    • With lockable storage option in the standard substructure



    Room amenities:

    • Due to the steplessly adjustable sanding unit, the edge sanding machine is suitable for a wide variety of sanding operations, such as sanding. B. vertical and horizontal sanding used



    Dimensions and weights
    Length approx.1430 mm
    Width/depth approx.600 mm
    Height approx.1250 mm
    Weight approx.187 kg
    Electrical Data
    Absorbed power drive motor2.2 kW
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter100 mm
    Sanding machine
    Sanding belt length2515 mm
    Sanding belt width150 mm
    Circumferential belt speed(s)16 m/s
    Sanding surface length950 mm
    Sanding surface width180 mm
    Work top(s)
    Work table height adjustment80 mm
    Longitudinal table length850 mm
    Longitudinal table width300 mm
    Longitudinal table height adjustment80 mm
    Min. cross table height965 mm
    Unit: pc(s).
