Wide belt sander

BBS 630 C

Compact machine with optimum price-performance ratio

20.199,00 EUR excl. Tax / pc(s).
24.036,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5343065

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • For processing of small parts, especially solid wood
    • Simple and safe operation

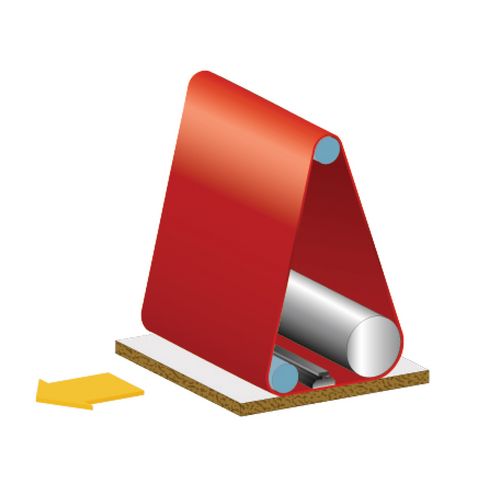

    • Combination sanding unit with sanding shoe for fine sanding of solid wood
    • Control panel on the front
    • Standard with ribbed steel roller Ø 120 mm for calibrating and hard sanding shoe with graphite coating on exchangeable insert
    • Motorized height adjustment of the work table
    • Electronically controlled sanding belt oscillation
    • Automatic star / delta starting of the motor
    • Digital display of the table position
    • Ammeter for displaying the current consumption of the sanding unit
    • Two feed belt speeds
    • Electromagnetic brake



    Dimensions and weights
    Length approx.1200 mm
    Width/depth approx.1020 mm
    Height approx.1590 mm
    Weight approx.582 kg
    Electrical Data
    Height adjustment motor power0.18 kW
    Feed motor output0.4/0.6 kW
    Drive motor output5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter150 mm
    Extraction performance2500 m³/h
    Feed unit
    Feed speed4.5 / 9 m/min
    Pneumatic connection
    Operating pressure5.5 bar
    Compressed-air consumption20 l/min
    Explanation about compressed-air consumptionwithout fan
    Sanding machine
    Sanding belt length1600 mm
    Sanding belt width650 mm
    Circumferential belt speed(s)18,5 m/s
    Max. sanding width630 mm
    Workpiece
    Min. height3 mm
    Max. height160 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1







    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.

    Optional parts

    Optional parts can not be retrofitted and are available only when ordering new machines.
