Wide belt sander

CASADEI LIBRA 35/2 RTC 110 Workshop equipment 2

Two-belt version with 1100 mm sanding width for the price-conscious craftsman's workshop

31.990,00 EUR excl. Tax / pc(s).
38.068,10 EUR incl. 19% Tax / pc(s).
Promotional price *
25.599,00 EUR excl. Tax / pc(s).
30.462,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 29.02.2024 in Germany.

Art.-No. 5222354

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • The LIBRA 35 calibration and fine grinding machine is an extremely versatile machine that can be used in different ways
    • Robust tube-stiffened monobloc steel machine body with working units mounted high up for maximum rigidity

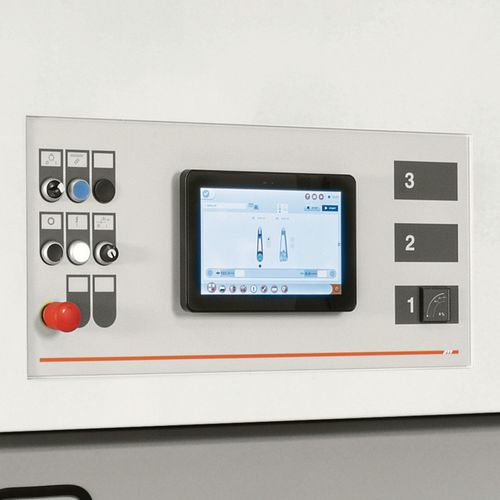

    • User-friendly due to clear control panel on the front side
    • Motorized table height adjustment
    • Digital display for working height
    • Electronically controlled sanding belt oscillation with reduced compressed air requirement
    • Automatic star-delta start for main motor
    • Natural rubber feed carpet with negative profile
    • Support table with two rollers in the infeed and outfeed of the feed carpet
    • Carpet feed via gear motor with two speeds
    • Flexible steel pressure rail in front of the first unit
    • Rubber pressure rollers, in front and behind each working unit
    • Pneumatic belt tensioning for each unit with decimal correction option for grain/ belt thickness

    SmartControl S electronic control with Easy2Go Sand (sanding shoe) - for machines with elastic or electronic sanding shoe instead of standard FOX-500 control 10" color touch screen

    • Machine management by touch screen operation with the possibility to store up to 999 working programs
    • Total operation of the electronic shoe with 3 modes of operation: shoe off; shoe activated with all segments; shoe activated only with the sectors necessary for the geometric shape of the piece
    • Preselection and activation of +/- segments to the right or left of the piece
    • Detection of framed pieces
    • Automatic activation sequence of main motors
    • Control and timing of the grinding rollers 45, 30 or 20 sh (only in combination with option on/off of rollers from control panel)
    • Control and adjustment of working height
    • Selection of running direction of grinding belts
    • Machine operation report (working hours, machine hours)
    • Production report (produced running meters)
    • Control of error messages in case of machine malfunction



    Dimensions and weights
    Length approx.1650 mm
    Width/depth approx.1820 mm
    Height approx.1960 mm
    Electrical Data
    Height adjustment motor power0,25 kW
    Feed motor output0.33/0.55 kW
    Drive motor output15 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter2 x 140 mm
    Feed unit
    Feed speed4.5 / 9 m/min
    Sanding machine
    Sanding belt length1900 mm
    Sanding belt width1115 mm
    Max. sanding width1100 mm
    Workpiece
    Min. height4 mm
    Max. height170 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

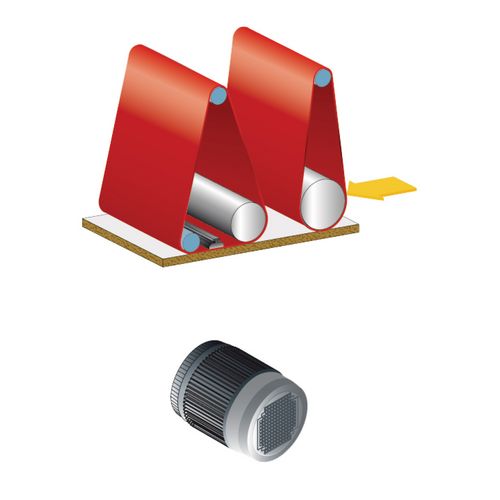

    1. unitangular grooved steel roller Ø 120 mm, fine adjustment for calibration, pneumatic on/off of the roller
    2. unitCombination unit with finely adjustable working height for calibrating and fine grinding: rubber-coated roller Ø 120 mm (45 Sh), hard grinding shoe with graphite coating on replaceable insert and pneumatic on/off of roller
    Link grinding shoeelastic, sector distance 56
    Electronic controlSmartControl S with Easy2Go Sand
    Setting the work thicknesselectronic
    Automatic carpet centring
