| Dimensions and weights | |
|---|---|
| Length approx. | 1650 mm |
| Width/depth approx. | 1820 mm |
| Height approx. | 1960 mm |

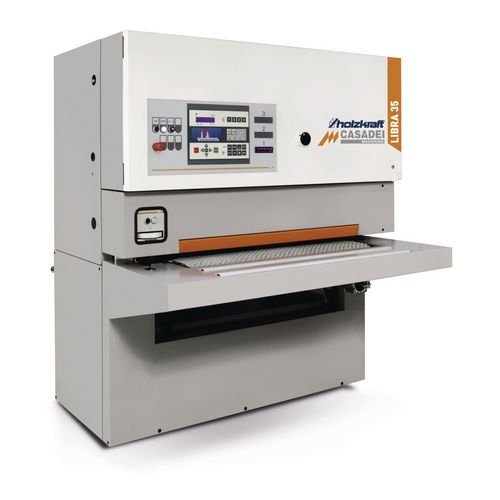

Wide belt sander
CASADEI LIBRA 35/2 RTC 110 Workshop equipment
Two-belt version with 1100 mm sanding width for the price-conscious craftsman's workshop
30.450,00
EUR excl. Tax / pc(s).
36.235,50 EUR incl. 19% Tax / pc(s).
36.235,50 EUR incl. 19% Tax / pc(s).
Promotional price *
25.499,00 EUR excl. Tax / pc(s).30.343,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2026 in Germany.
Art.-No. 5222353
Are you interested in this product?
Put a request
Find Trader
Productdetails
- The LIBRA 35 calibration and fine grinding machine is an extremely versatile machine that can be used in different ways
- Robust tube-stiffened monoblock steel machine body with working units mounted high up for maximum rigidity
- User-friendly due to clear control panel on the front side
- Motorized table height adjustment
- Digital display for working height
- Electronically controlled sanding belt oscillation with reduced compressed air requirement
- Automatic star-delta start for main motor
- Natural rubber feed carpet with negative profile
- Support table with two rollers in the infeed and outfeed of the feed carpet
- Carpet feed via gear motor with two speeds
- Flexible steel pressure rail in front of the first unit
- Rubber pressure rollers, in front and behind each working unit
- Pneumatic belt tensioning for each unit with decimal correction possibility of the grain/ belt thickness
| Electrical Data | |
|---|---|
| Height adjustment motor power | 0,25 kW |
| Output power (motor power) | 15 kW |
| Feed motor output | 0.33/0.55 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Number of extraction ports | 2 |
| Extraction port diameter | 140 mm |
| Feed unit | |
|---|---|
| Feed speed | 4.5 / 9 m/min |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| Data storage location | On the device and a remote server |
| Data access | On the device and physical and wireless interfaces |
| Further information | In the operating instructions or at info@stuermer-maschinen.de |
| Sanding machine | |
|---|---|
| Sanding belt length | 1900 mm |
| Sanding belt width | 1115 mm |
| Max. sanding width | 1100 mm |
| Workpiece | |
|---|---|
| Min. height | 4 mm |
| Max. height | 170 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

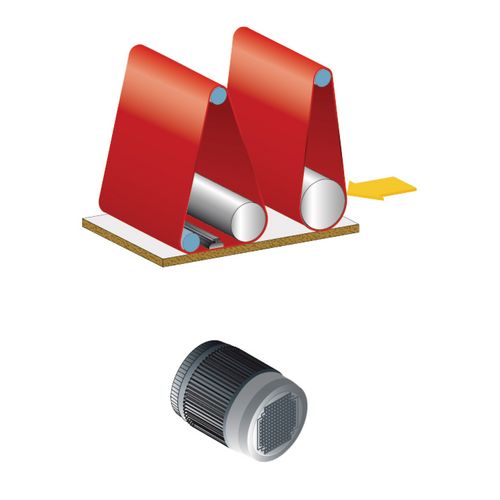

| 1. unit | angular grooved steel roller Ø 120 mm, fine adjustment for calibration, pneumatic on/off of the roller |
| 2. unit | Combination unit with finely adjustable working height for calibrating and fine grinding: rubber-coated roller Ø 120 mm (45 Sh), hard grinding shoe with graphite coating on replaceable insert and pneumatic on/off of roller |
| Link grinding shoe | elastic, sector distance 56 |

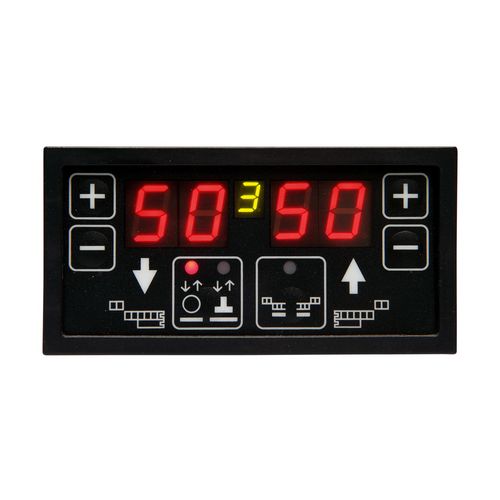

| Electronic control | FOX 500 KTR |
| Setting the work thickness | electronic |
| Automatic carpet centring | ✔ |
