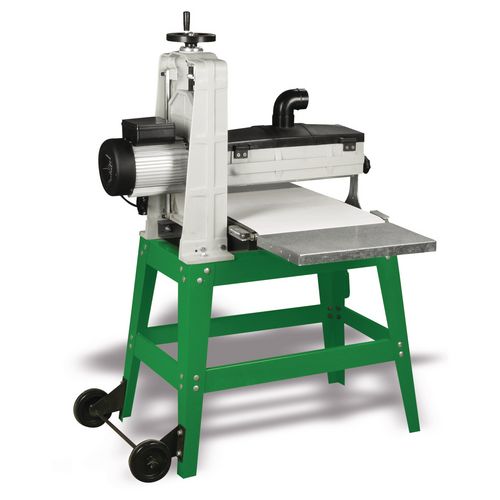

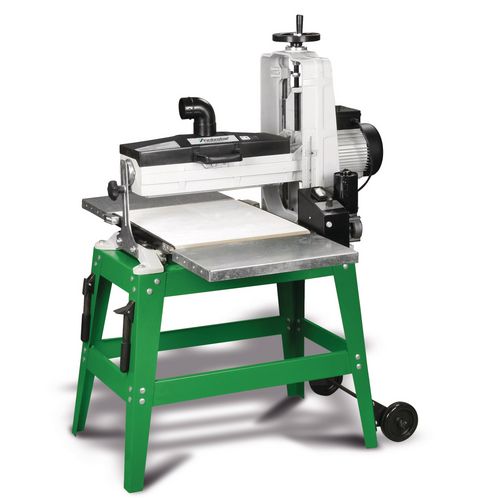

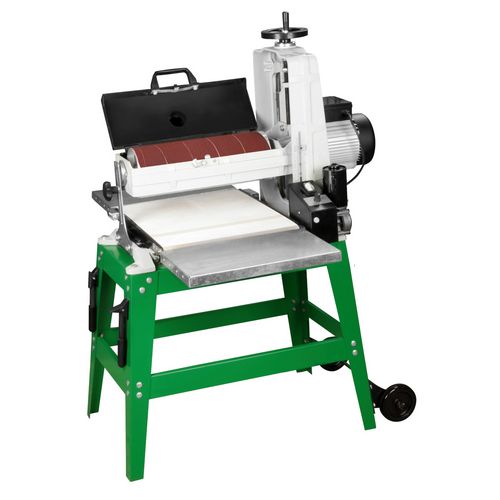

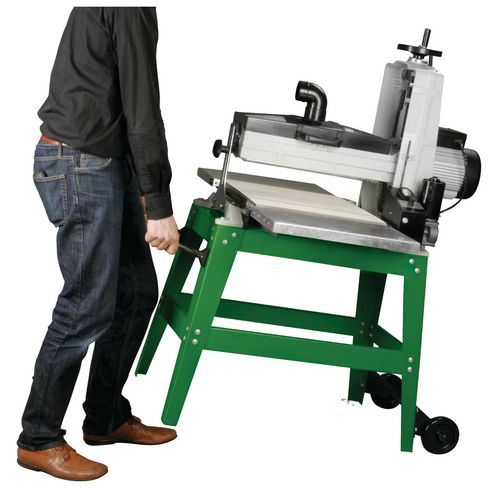

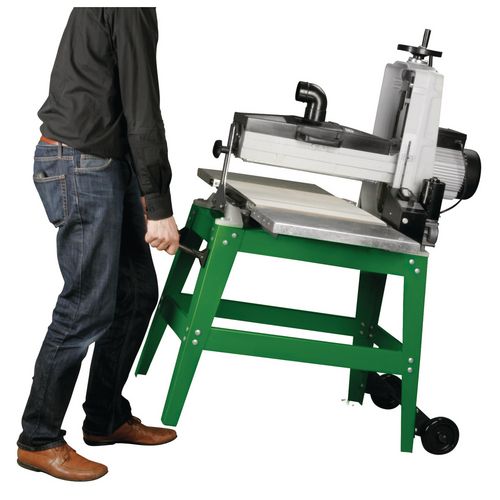

    Cylindrical sanding machine

    ZSM 405

    For surface sanding of workpieces up to 405 mm wide

    1.099,00 EUR excl. Tax / pc(s).
    1.307,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5901405

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • The ideal cylindrical sanding machine for ambitious DIY enthusiasts
    • Continuously adjustable feed speed of 0 - 3.5 m/min for optimum sanding results

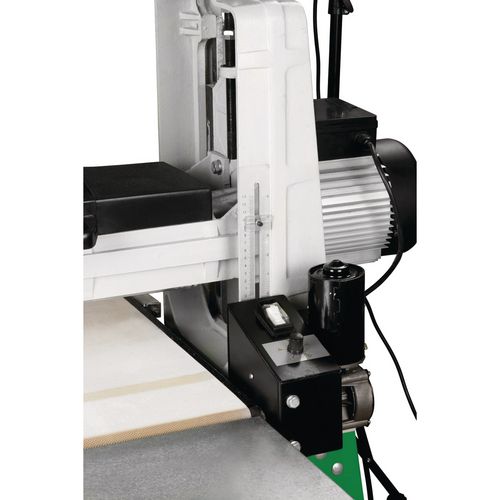

    • The sanding unit is adjusted quickly and precisely to the workpieces by height adjustment crank and scale
    • Standard with connection for suction device
    • Suitable for the use of commercial abrasive cloths



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.1090 mm
    Width/depth approx.1050 mm
    Height approx.1150 mm
    Weight approx.98 kg
    Electrical Data
    Output power (motor power)1.1 kW
    Input power1.5 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter100 mm
    Feed unit
    Feed speed0 – 3.5 m/min
    Belt conveyor length1074 mm
    Belt conveyor width405 mm
    Sanding machine
    Sanding belt length2520 mm
    Sanding belt width78 mm
    Max. sanding width400 mm
    Sanding roller width410 mm
    Work top(s)
    Work table length1050 mm
    Work table width430 mm
    Table height690 mm
    Workpiece
    Min. height5 mm
    Max. height130 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Connection for suction device
    • Front table extension
    • Rear table extension
    • Retractor
