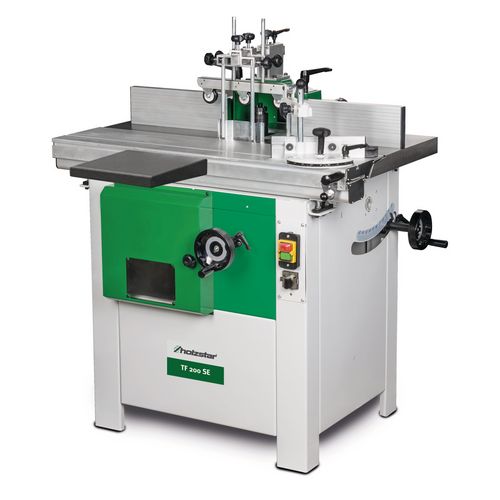

    Table router

    TF 200 SE

    With aluminum slide carriage and swiveling milling spindle

    2.999,00 EUR excl. Tax / pc(s).
    3.568,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    2.299,00 EUR excl. Tax / pc(s).
    2.735,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Art.-No. 5902000

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Smooth sliding carriage for precise workpiece guidance
    • Milling stop with fine adjustable aluminum stops
    • Quick and easy change of the speed by means of splined belts
    • Large working surface thanks to solid and torsion-free gray cast iron table
    • Large dimensioning milling unit made of gray cast iron, swiveling from +5 to -45 °
    • Selector switch for clockwise or anti-clockwise rotation of the milling spindle
    • Backward swiveling milling spindle for optimum use of a feed unit, maximum safety and a clean milling pattern
    • Downholder for precise workpiece guidance
    • Boom table available as accessory



    Dimensions and weights
    Length approx.1000 mm
    Width/depth approx.850 mm
    Height approx.1200 mm
    Weight approx.218 kg
    Electrical Data
    Drive motor output2,8 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter100 mm
    Milling cutter diameter max.
    Max. tool diamter lowerable 180 mm
    Milling spindle
    Angle+5 – -45 °
    Usable length100 mm
    Speed(s)1800 / 3000 / 6000 / 9000 min¯¹
    Arbor diameter30 mm
    Work table
    Table height 900 mm
    Sliding carriage length1000 mm
    Sliding carriage width240 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • miter
    • down device
    • Frässchutzhaube



    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
