    Brandimage to Product CASADEI PS 63 TERSA

    Thicknessing plane

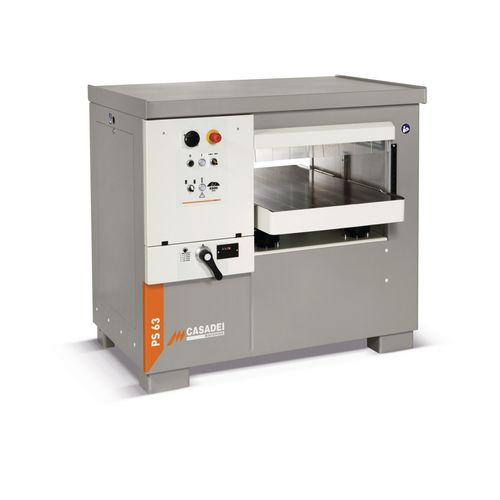

    CASADEI PS 63 TERSA

    The robust craftsman machines

    14.990,00 EUR excl. Tax / pc(s).
    17.838,10 EUR incl. 19% Tax / pc(s).
    Promotional price *
    11.999,00 EUR excl. Tax / pc(s).
    14.278,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Art.-No. 5220164

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Motorized thickness table lift with two speeds
    • Numeric display for working height
    • Thickness table made of gray cast iron

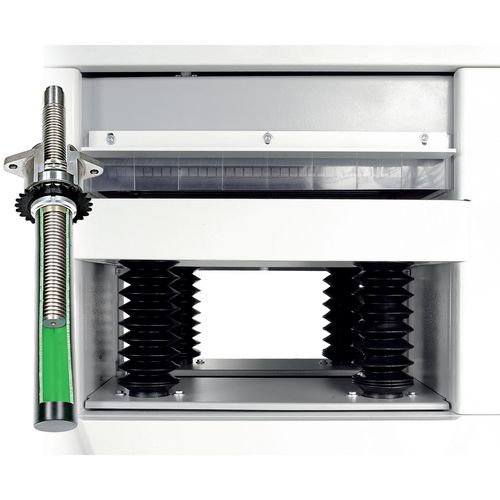

    • The thickness table is mounted on four large trapezoidal thread spindles, for max. Stability and precision
    • Four feed rates
    • Optionally with two rollers in the thickness table
    • Standard with noise protection and chip protection curtain on the workpiece inlet and outlet
    • Roller contact pressure adjustable

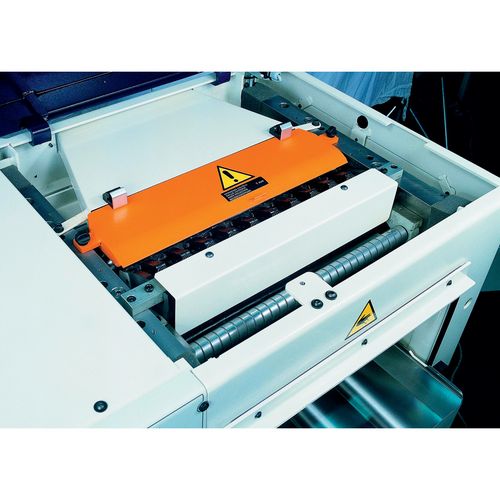

    • Front feed roller with helical toothing
    • Extractor roller with rubber coating
    • Powerful industrial engine



    Dimensions and weights
    Length approx.1305 mm
    Width/depth approx.1080 mm
    Weight approx.750 kg
    Electrical Data
    Drive motor output9 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter thickness150 mm
    Feed
    Speed5/8/12/18 m/min
    Planing knife shaft

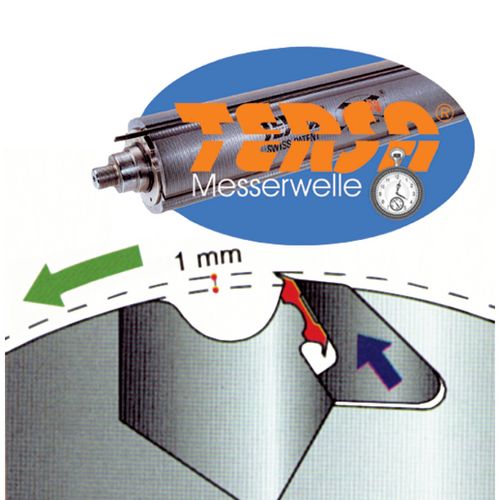

    TypeTERSA
    Number of planing blades4 St
    Speed4500 min¯¹
    Max. planing width630 mm
    Thickness
    Working height min.3.5 mm
    Working height max.300 mm
    Working length min.210 mm
    Max. cutting depth8 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1







    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.

    Optional parts

    Optional parts can not be retrofitted and are available only when ordering new machines.
