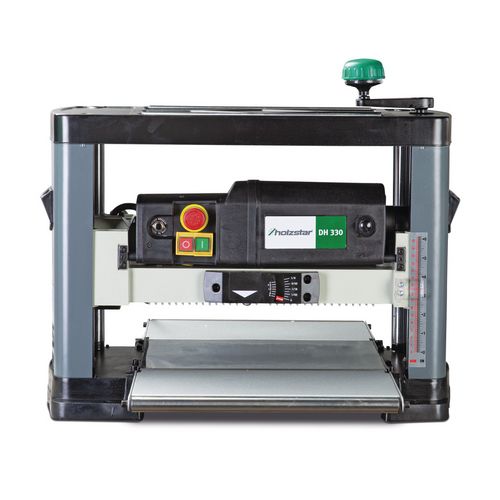

    Thicknessing plane

    DH 330

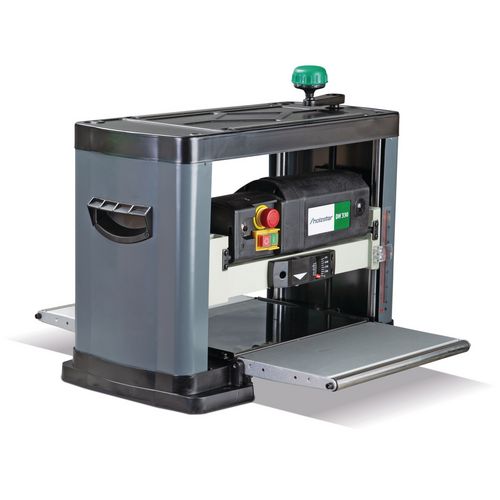

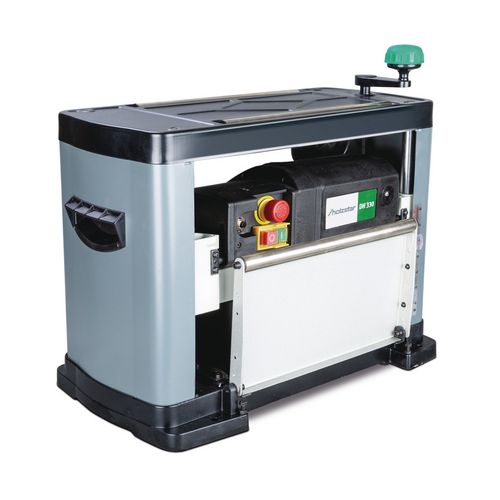

    portable thicknessing planer with 330 mm planing width

    475,00 EUR excl. Tax / pc(s).
    565,25 EUR incl. 19% Tax / pc(s).
    Promotional price *
    389,00 EUR excl. Tax / pc(s).
    462,91 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5904330

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

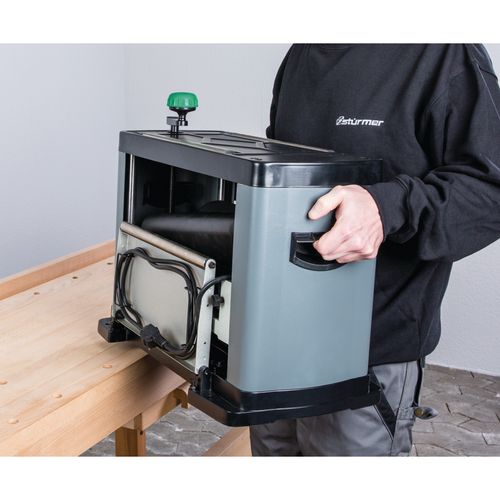

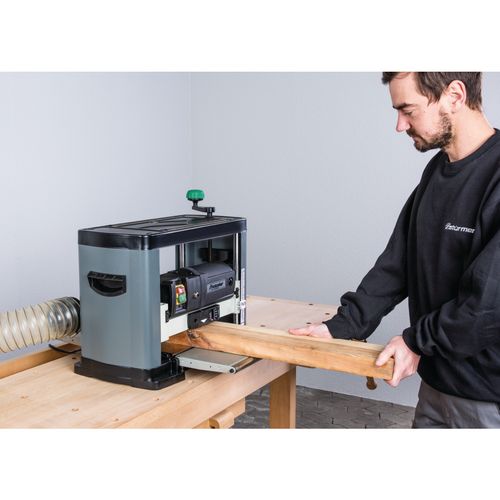

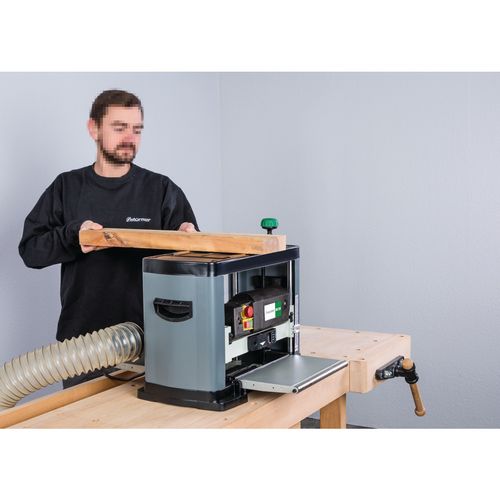

    • Ideal for mobile use thanks to small, lightweight and compact design
    • Robust welded steel design with stable cast worktop
    • For processing solid wood

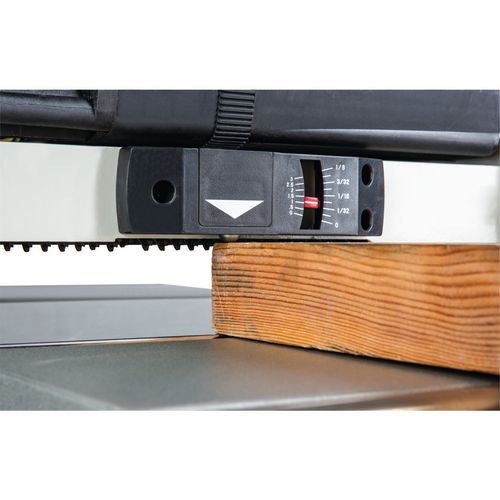

    • Easy and precise adjustment of material removal with mechanical display
    • Powerful motor with overcurrent protection and restart safeguard

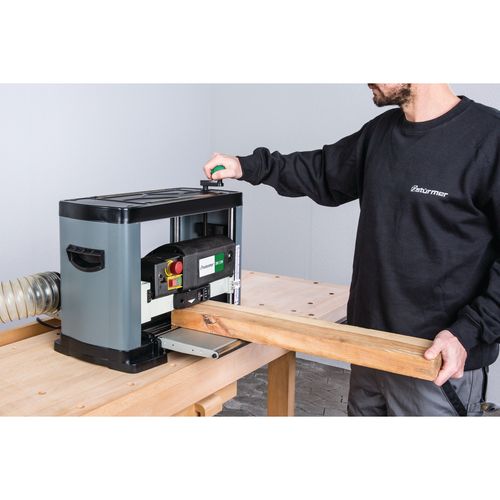

    • Easy and precise height adjustment with crank and clear-cut scale

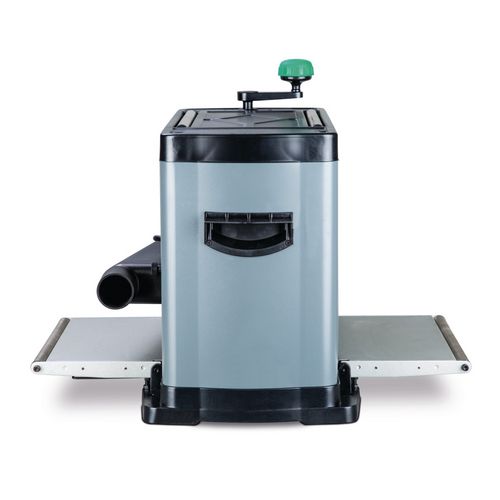

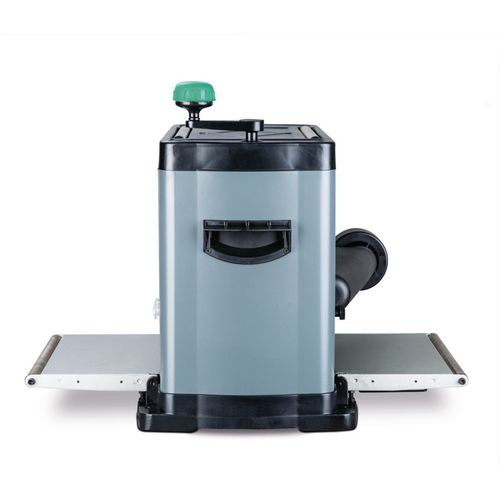

    • Fold-away feed and discharge tables with rollers for long workpieces

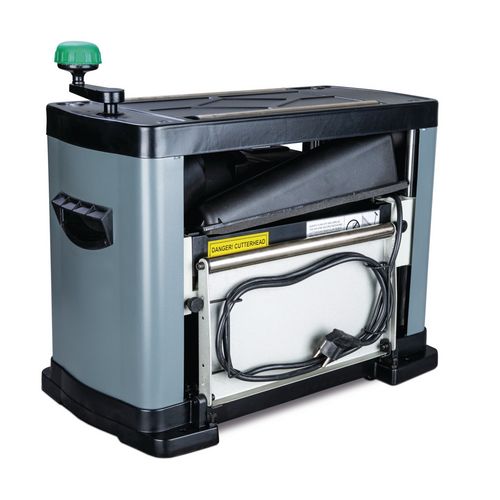

    • With mains cable holder below the discharge table

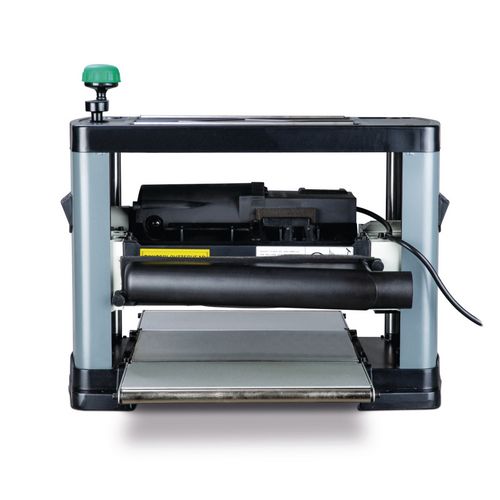

    • Integrated extraction funnel Ø 58 mm
    • Extraction adapter to Ø 100 mm included in scope of delivery
    • Four holes Ø 10 mm in machine base for fastening on workbenches



    Data sheets
    Data sheet measurement
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.640 mm
    Width/depth approx.585 mm
    Height approx.490 mm
    Weight approx.33 kg
    Electrical Data
    Drive motor output0.9 kW
    Absorbed power drive motor1,5 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter thickness52.5 mm
    Feed
    Speed6 m/min
    Jointing
    Max. cutting depth2.8 mm
    Planing knife shaft
    TypeStrip planer blade shaft
    Number of planing blades2
    Speed8500 min¯¹
    Max. planing width330 mm
    Thickness
    Working height min.6 mm
    Working height max.152 mm
    Max. cutting depth2,8 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Crank
    • Extraction funnel
    • Extraction adapter 64,5 mm / 101 mm

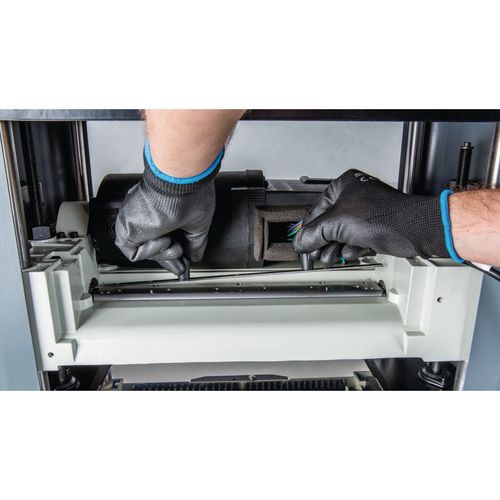

    • 2 magnets for blade change
    • Allen key
