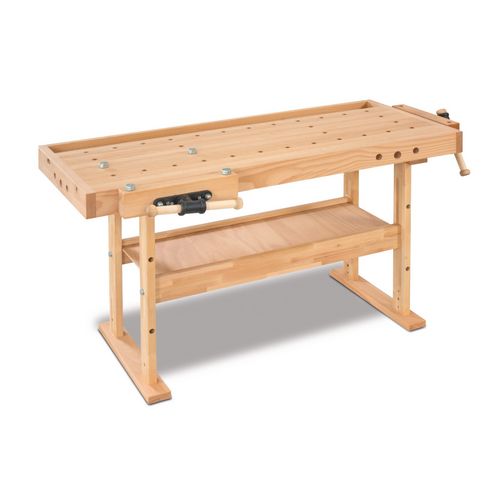

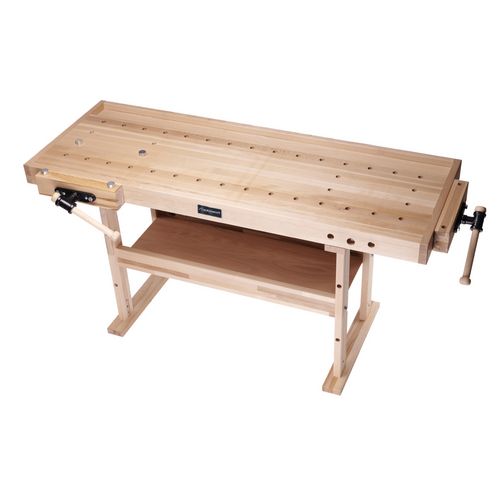

    Workbench

    HB 1701

    615,00 EUR excl. Tax / pc(s).
    731,85 EUR incl. 19% Tax / pc(s).
    Promotional price *
    569,00 EUR excl. Tax / pc(s).
    677,11 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5101711

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

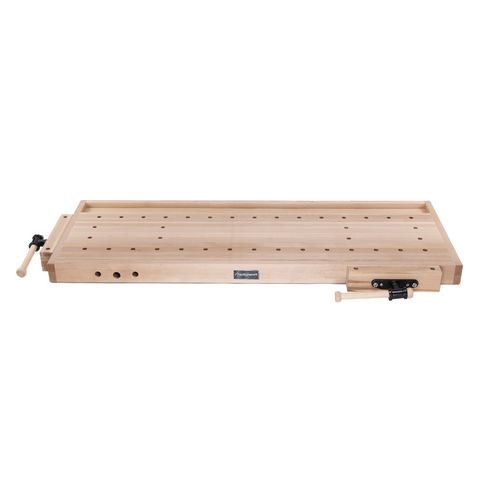

    • Upper part made of continuous Buchenleimholzplatten
    • Base made of finger-jointed beechwood
    • Carefully processed toolbox
    • With French front and back forceps
    • With two bank hook rows
    • Surfaces environmentally friendly oiled
    • Through pre-drilled holes for the collets suitable for both left and right handed
    • Delivery is disassembled for self-assembly



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length of workspace without vice jaws1650 mm
    Width/depth of workspace without vice jaws610 mm
    Length approx.1800 mm
    Width/depth approx.760 mm
    Height approx.850 mm
    Weight approx.62 kg

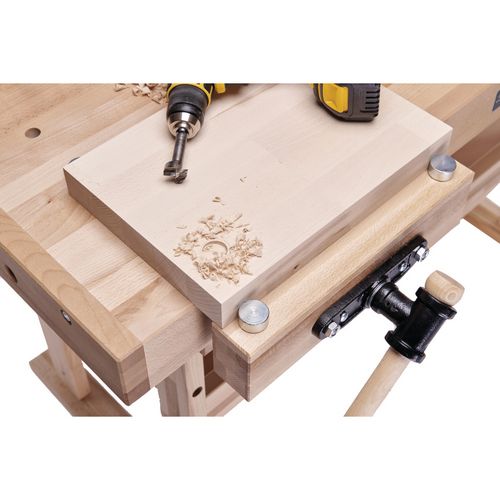

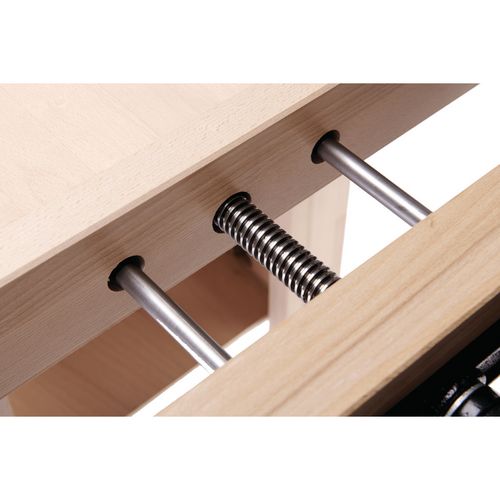

    Face vise
    Length360 mm
    Width55 mm
    Span width130 mm
    Span width up to centre of round hook160 mm
    Tail vise
    Length360 mm
    Width55 mm
    Span width130 mm
    Span width up to centre of round hook160 mm
    Work table
    Working height850 mm
    Board thickness30 mm
    Max. load350 kg

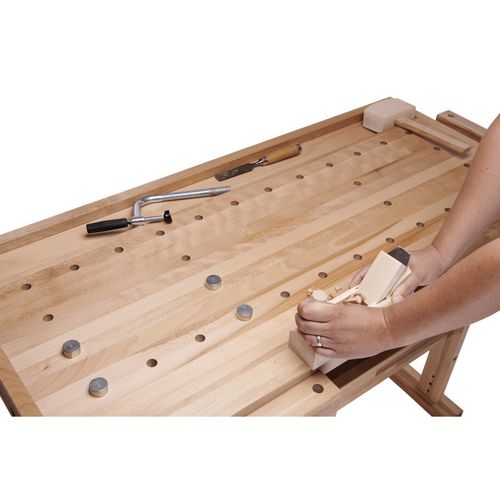

    Hole diameter work plate19 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • 4 round bench hook
