| Oil-free / oil-lubricated | Oil-lubricated |
| Mobile / Stationary | Stationary |

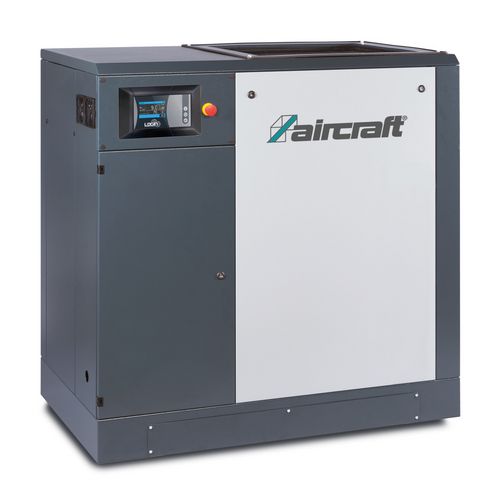

Screw compressor
A-K-MAX 18.5 – 90 (IE4) Stand alone
Compact screw compressor with constant speed thanks to IE4 motor and innovative LOGIN control system
From 16.030,00
EUR excl. Tax / pc(s).
From 19.075,70
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Noise emission | Price | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Effective delivery volume approx. (l/min) | Maximum Pressure (bar) | Air outlet | VPE | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Motor power (input power) electric motor (kW) | Sound pressure level Lp (dB(A)) | EUR excl. Tax | EUR incl. 19% Tax | |
| A-K-MAX 18.5-10 (IE4) | 2096004.2 | 2600 | 10 | 1 ¼ | 1 | 1330 | 850 | 1370 | 538 | 18,5 | 62 | 16.030,00 | 19.075,70 | |
| A-K-MAX 22-08 (IE4) | 2096202.2 | 3600 | 7,5 | 1 ¼ | 1 | 1330 | 850 | 1370 | 620 | 22 | 60 | 17.065,00 | 20.307,35 | |
| A-K-MAX 31-08 (IE4) | 2096312.2 | 4850 | 7,5 | 1.5 | 1 | 1590 | 1000 | 1560 | 847 | 30 | 68 | 24.195,00 | 28.792,05 | |
| A-K-MAX 31-10 (IE4) | 2096314.2 | 4300 | 10 | 1.5 | 1 | 1590 | 1000 | 1560 | 847 | 30 | 68 | 24.195,00 | 28.792,05 | |
| A-K-MAX 38-08 (IE4) | 2096402.2 | 6600 | 7,5 | 1.5 | 1 | 1590 | 1000 | 1560 | 902 | 37 | 70 | 24.930,00 | 29.666,70 | |
| A-K-MAX 45-08 (IE4) | 2097002.2 | 8200 | 7,5 | 2 | 1 | 1700 | 1250 | 1700 | 1251 | 45 | 72 | 32.470,00 | 38.639,30 | |
| A-K-MAX 45-10 (IE4) | 2097004.2 | 6700 | 10 | 2 | 1 | 1700 | 1250 | 1700 | 1194 | 45 | 72 | 32.470,00 | 38.639,30 | |
| A-K-MAX 55-08 (IE4) | 2097202.2 | 10100 | 7,5 | 2 | 1 | 1700 | 1250 | 1700 | 1251 | 55 | 72 | 35.910,00 | 42.732,90 | |
| A-K-MAX 55-10 (IE4) | 2097204.2 | 8300 | 10 | 2 | 1 | 1700 | 1250 | 1700 | 1251 | 55 | 72 | 35.910,00 | 42.732,90 | |
| A-K-MAX 55-13 (IE4) | 2097206.2 | 6500 | 13 | 2 | 1 | 1700 | 1250 | 1700 | 1251 | 55 | 72 | 36.710,00 | 43.684,90 | |
| A-K-MAX 76-08 (IE4) | 2097502.2 | 13500 | 7,5 | 2 | 1 | 2300 | 1460 | 1960 | 2880 | 75 | 67 | 55.735,00 | 66.324,65 | |
| A-K-MAX 76-10 (IE4) | 2097504.2 | 11700 | 10 | 2 | 1 | 2300 | 1460 | 1960 | 2880 | 75 | 67 | 55.735,00 | 66.324,65 | |
| A-K-MAX 76-13 (IE4) | 2097506.2 | 9700 | 13 | 2 | 1 | 2300 | 1460 | 1960 | 2880 | 75 | 67 | 56.250,00 | 66.937,50 | |
| A-K-MAX 90-08 (IE4) | 2097802.2 | 15900 | 7,5 | 2 | 1 | 2300 | 1460 | 1960 | 2927 | 90 | 67 | 59.975,00 | 71.370,25 | |
| A-K-MAX 90-10 (IE4) | 2097804.2 | 13400 | 10 | 2 | 1 | 2300 | 1460 | 1960 | 2927 | 90 | 67 | 59.975,00 | 71.370,25 | |
| A-K-MAX 90-13 (IE4) | 2097806.2 | 10400 | 13 | 2 | 1 | 2300 | 1460 | 1960 | 2927 | 90 | 67 | 62.870,00 | 74.815,30 | |
Select Attributes
General
- Effective delivery volume approx.
- Maximum Pressure
- Air outlet
- VPE
Dimensions and weights
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Motor power (input power) electric motor
Noise emission
- Sound pressure level Lp
Price
- excl. Tax
- incl. 19% Tax
Productdetails

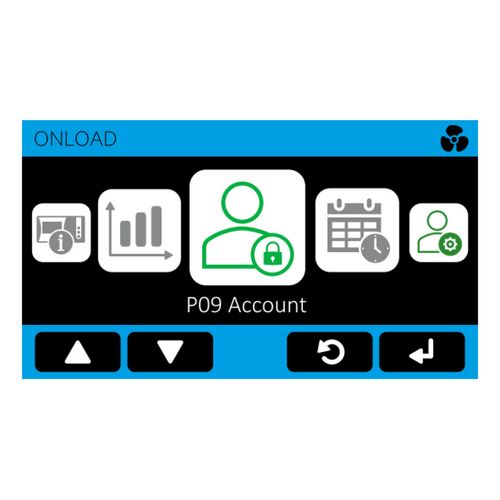

- Innovative LOGIN control with 4.3" touch screen for easy operation and full control of all functions.
- Energy-efficient IE4 motor
- Rotation direction control for the motor, prevents damage during start-up or after a change of stand location
- High cooling effect and low noise level due to thermostatically controlled radial fan
- Optimum operating temperature and low fluctuation of oil temperature due to thermostatically controlled radial fan, optimum cooling air flow and generously dimensioned heat exchangers
- Aftercooler reduces the effort for drying and filtration of the generated compressed air
- Star-delta switching as standard

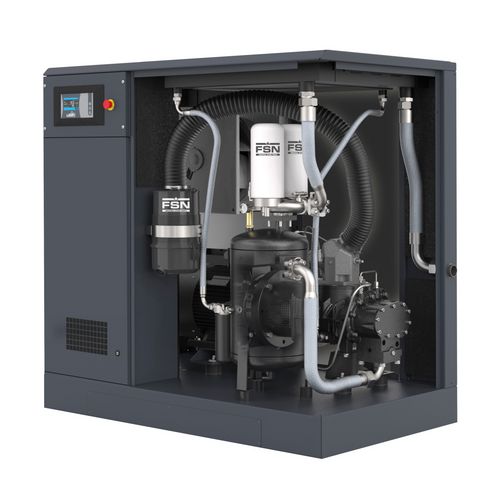

- Easy to service: simple removal and installation of all components requiring maintenance
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electric |
| Noise emission | |
|---|---|
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| Data storage location | On the device |
| Data access | On the device and physical and wireless interfaces |
| Further information | In the operating instructions or at info@stuermer-maschinen.de |
