| Table diameter | 120 mm |
| Centre height table vertical | 110 mm |
| Horizontal table height | 150 mm |
| Total vertical height | 190 mm |
| Explanation Total vertical height | without motor cover |
| Through hole | 30 mm |
| T-slot width | 12 H7 |
| Slot width | 14 H7 |
| Servo motor type | Siemens |
| Transmission ratio | 1:60 |
| Minimum step size | 0,001 ° |
| Maximum speed | 44.4 with motor 4000 min¯¹ |
| Pneumatic clamping force | 118 Nm |
| Explanation Pneumatic clamping force | with connection to compressed air and 5 bar operating pressure |
| Parts accuracy | 60 " |
| Unidirectional repeatability | +/- 2 " |
| Bidirectional repeatability | 118 Nm |
| Max. tool weight vertical | 50 kg |
| Max. tool weight horizontal | 100 kg |
| VPE | 1 |
Fourth axle complete set
OPTImill F 105/F 150E
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 350110003
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Rotary dividing table Ø 120 mm
- three-jaw lathe chuck Ø 100 mm

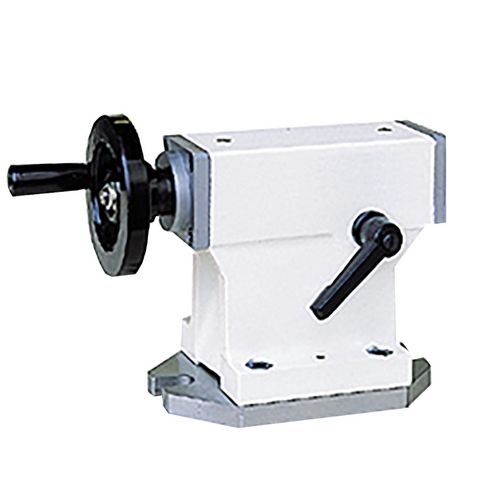

- Tailstock
- Mounting
| Dimensions and weights | |
|---|---|
| Weight approx. | 38 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Circular dividing table Ø 125 mm
- Three-jaw lathe chuck Ø 100 mm
- Tailstock with MK 2 quill
- Including assembly
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
