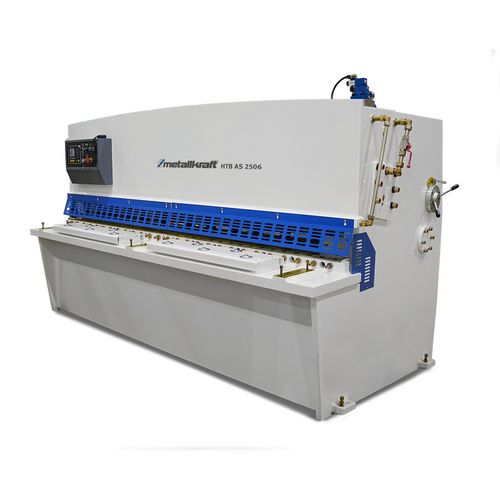

HTB AS Hydraulic swing cut sheet metal shears

Variations

		General															Dimensions and weights										Electrical Data	Price
Title	Art.-No.	Working width (mm)	Cutting performance material tensile strength 400 N/mm² (mm)	Cutting performance material tensile strength 450 N/mm² (mm)	Cutting performance material tensile strength 600 N/mm² (mm)	Cutting performance material tensile strength 700 N/mm² (mm)	Number of hold-down units (St)	Number of sheet support arms (St)	Rear stop adjustment range up to (mm)	Rear stop speed (mm/s)	Side stop length (mm)	Cutting angle (°)	Max. strokes for full cutting length (/min)	Oil tank capacity (l)	VPE	Cuts per minute	Length (mm)	Width / depth (mm)	Height (mm)	Table length (mm)	Table depth (mm)	Table height (mm)	Length approx. (mm)	Width/depth approx. (mm)	Height approx. (mm)	Weight approx.	Drive motor output (kW)	EUR excl. Tax	EUR incl. 19% Tax
HTB AS 2004	4601104	2000	4	3	2	2	10	3	650	17	610	1.5	33	140	1		2535	1570	1720	2300	390	795	2535	1570	1720		7,5	Price upon request	-
HTB AS 2006	4601106	2000	6	5	4	3	10	3	650	17	910	2	17	190	1		2550	1650	1900	2330	440	815	2550	1650	1900		7,5	Price upon request	-
HTB AS 2008	4601108	2000	8	7	5	4	10	3	650	17	910	2	13	190	1		2560	1650	1900	2330	440	815	2560	1650	1900		11	Price upon request	-
HTB AS 2504	4601204	2500	4	3	2	2	12	3	650	17	610	1.5	33	140	1	33	3035	1570	1720	2800	390	795	3035	1570	1720	3450	7,5	Price upon request	-
HTB AS 2506	4601206	2500	6	5	4	3	12	3	650	17	910	2	17	190	1	17	3050	1650	1900	2830	440	815	3050	1650	1900	5450	7,5	Price upon request	-
HTB AS 2508	4601208	2500	8	7	5	4	12	3	650	17	910	2	13	190	1	13	3060	1650	1900	2830	440	815	3060	1650	1900	5750	11	Price upon request	-
HTB AS 2510	4601210	2500	10	8	6	5	12	3	800	17	910	2	13	190	1	13	3050	2000	1920	2830	510	815	3050	2000	1920	6950	15	Price upon request	-
HTB AS 2512	4601212	2500	12	10	8	6	12	3	800	17	910	2	12	400	1	12	3170	2150	2180	2950	545	825	3170	2150	2180	9750	22	Price upon request	-
HTB AS 2516	4601216	2500	16	14	10	9	12	3	800	17	910	2.5	13	400	1	13	3250	2300	2200	2950	545	825	3250	2300	2200	10950	22	Price upon request	-
HTB AS 2520	4601220	2500	20	17	13	11	12	3	800	17	910	2.5	8	500	1	8	3300	2580	2300	2960	620	885	3300	2580	2300	13250	30	Price upon request	-
HTB AS 3204	4601304	3200	4	3	2	2	14	3	650	17	910	1.5	26	190	1	26	3750	1640	1850	3530	445	795	3750	1640	1850	5450	7,5	Price upon request	-
HTB AS 3206	4601306	3200	6	5	4	3	14	3	650	17	910	1.5	17	190	1	17	3750	1650	1900	3530	445	815	3750	1650	1900	6450	7,5	Price upon request	-
HTB AS 3208	4601308	3200	8	7	5	4	14	3	650	17	910	1.5	13	190	1	13	3760	1650	1900	3530	445	815	3760	1650	1900	6750	11	Price upon request	-
HTB AS 3210	4601310	3200	10	8	6	5	14	3	800	17	910	1.5	13	190	1	13	3800	2000	1920	3530	510	815	3800	2000	1920	8450	15	Price upon request	-
HTB AS 3212	4601312	3200	12	10	8	6	14	3	800	17	910	2	10	400	1	10	3800	2150	2180	3650	545	825	3800	2150	2180	11450	22	Price upon request	-
HTB AS 3216	4601316	3200	16	14	10	9	14	3	800	17	910	2	10	400	1	10	3870	2300	2180	3650	545	825	3870	2300	2180	12550	22	Price upon request	-
HTB AS 4004	4601404	4000	4	3	2	2	16	4	800	17	910	1.5	23	190	1	23	4550	1900	1900	4325	510	800	4550	1900	1900	7450	7,5	Price upon request	-
HTB AS 4006	4601406	4000	6	5	4	3	16	4	800	17	910	1.5	15	190	1	15	4550	2000	2000	4325	510	815	4550	2000	2000	8150	7,5	Price upon request	-
HTB AS 4008	4601408	4000	8	7	5	4	16	4	800	17	910	1.5	12	190	1	12	4560	1960	1920	4325	510	815	4560	1960	1920	8750	15	Price upon request	-
HTB AS 4010	4601410	4000	10	8	6	5	16	4	800	17	910	1.5	9	400	1	9	4700	2100	2200	4440	545	815	4700	2100	2200	11750	22	Price upon request	-
HTB AS 4012	4601412	4000	12	10	8	6	16	4	800	17	910	1.75	8	400	1	8	4700	2280	2200	4440	545	825	4700	2280	2200	13750	22	Price upon request	-
HTB AS 4016	4601416	4000	16	14	10	9	16	4	800	17	910	1.75	9	600	1	9	4700	2575	2200	4465	620	885	4700	2575	2200	16950	22	Price upon request	-
HTB AS 5004	4601504	5000	4	3	2	2	19	5	800	17	910	1.5	16	320	1	16	5700	1900	2000	5290	620	910	5700	1900	2000	8450	7,5	Price upon request	-
HTB AS 5008	4601508	5000	8	7	5	4	19	5	800	17	910	1.5	10	320	1	10	5600	2360	2180	5365	610	855	5700	2450	2350	12750	18,5	Price upon request	-
HTB AS 5012	4601512	5000	12	10	8	6	19	5	800			2	6	440	1	6	5800	2450	2400	5465	610	855	5800	2450	2400	18950	30	Price upon request	-
HTB AS 6004	4601604	6000	4	3	2	2	22	5	800	17	910	1.5	12	440	1	12	6500	2460	2250	6330	650	900	6500	2460	2250	16950	15	Price upon request	-
HTB AS 6006	4601606	6000	6	5	4	3	22	5	800	17	910	1.5	8	440	1	8	6550	2470	2500	6365	610	915	6550	2470	2500	19450	15	Price upon request	-
HTB AS 6008	4601608	6000	8	7	5	4	22	5	800	17	910	1.5	9	440	1	9	6600	2450	2500	6365	610	915	6600	2470	2500	21450	18,5	Price upon request	-
HTB AS 6010	4601610	6000	10	8	6	5	22	5	800		910	1.5	6	440	1	6	6600	2100	2300	6365			6600	2590	2700	27450	22	Price upon request	-
HTB AS 6012	4601612	6000	12	10	8	6	22	5	800		910	2	5	440	1	5	6600	2600	2700	6365			6600	2600	2700	30950	30	Price upon request	-

Select Attributes

General

Working width
Cutting performance material tensile strength 400 N/mm²
Cutting performance material tensile strength 450 N/mm²
Cutting performance material tensile strength 600 N/mm²
Cutting performance material tensile strength 700 N/mm²
Number of hold-down units
Number of sheet support arms
Rear stop adjustment range up to
Rear stop speed
Side stop length
Cutting angle
Max. strokes for full cutting length
Oil tank capacity
VPE
Cuts per minute

Dimensions and weights

Length
Width / depth
Height
Table length
Table depth
Table height
Length approx.
Width/depth approx.
Height approx.
Weight approx.

Electrical Data

Drive motor output

Price

excl. Tax
incl. 19% Tax

Electrical Data
Supply voltage	380 V
Mains frequency	50 Hz

Manufacturer infos
Manufacturer	Stürmer Maschinen GmbH
Address	Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
