| Working width | 2500 mm |
| Cutting performance material tensile strength 400 N/mm² | 6 mm |
| Cutting performance material tensile strength 450 N/mm² | 5 mm |
| Cutting performance material tensile strength 600 N/mm² | 4 mm |
| Cutting performance material tensile strength 700 N/mm² | 3 mm |
| Cuts per minute | 17 |
| Number of hold-down units | 12 St |
| Number of sheet support arms | 3 St |
| Rear stop adjustment range up to | 650 mm |
| Rear stop speed | 17 mm/s |
| Side stop length | 910 mm |
| Cutting angle | 2 ° |
| Max. strokes for full cutting length | 17 /min |
| Oil tank capacity | 190 l |
| VPE | 1 |

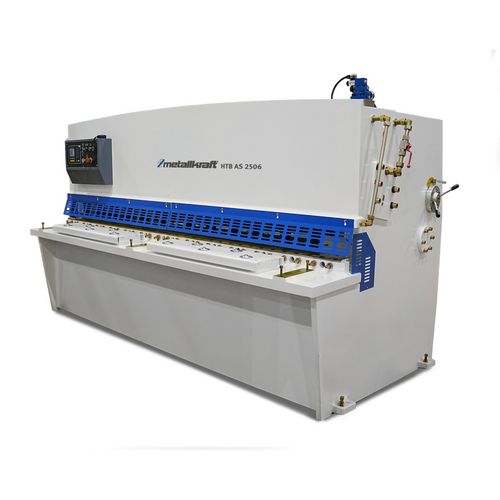

Hydraulic swing cut sheet metal shears
HTB AS 2506
Oscillating shears with fixed cutting angle
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4601206
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Estun E21S NC control
- Motorised backgauge with ball screws
- Manual cutting gap adjustment via a central handwheel with scale</ li>
- Large-dimensioned hydraulic hold-down devices for secure fixing of the sheet metal during the cutting process
- Table supports fitted with transfer balls for easier handling of heavy and large parts
- Rear space protection via a safety light curtain
- Low-maintenance hydraulics from ‘Bosch Rexroth’ and ‘Schneider’ electrical components
| Dimensions and weights | |
|---|---|
| Length | 3050 mm |
| Width / depth | 1650 mm |
| Height | 1900 mm |
| Table length | 2830 mm |
| Table depth | 440 mm |
| Table height | 815 mm |
| Length approx. | 3050 mm |
| Width/depth approx. | 1650 mm |
| Height approx. | 1900 mm |
| Weight approx. | 5450 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 7,5 kW |
| Supply voltage | 380 V |
| Mains frequency | 50 Hz |
| Manufacturer infos | |
|---|---|
| Manufacturer | Stürmer Maschinen GmbH |
| Address | Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany |
| info@stuermer-maschinen.de | |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Drive | Hydraulic |
| Cutting kerf adjustment | Manual |
| Cutting angle adjustment | Manual |
| Cutting line lighting and visual slots | ja |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
