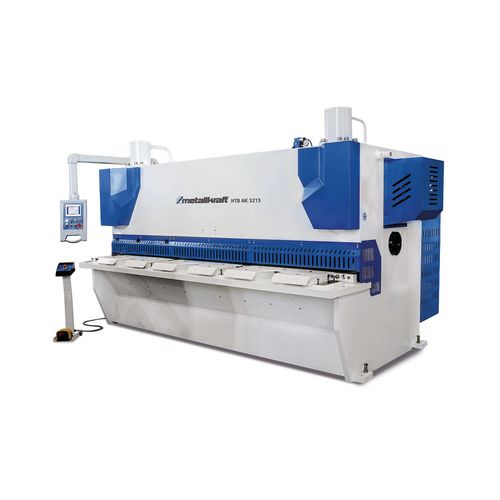

Motorised, slide-guided sheet metal shear

HTB AK

with controlled adjustment of cutting angle and cutting gap

Price upon request

Prices are recommended retail prices. Retailer prices may vary.

Are you interested in this product?

Put a request

Find Trader

Variations

		General											Dimensions and weights							Electrical Data	Price
Title	Art.-No.	Working width (mm)	Cutting performance material tensile strength 400 N/mm² (mm)	Cutting performance material tensile strength 450 N/mm² (mm)	Cutting performance material tensile strength 600 N/mm² (mm)	Cutting performance material tensile strength 700 N/mm² (mm)	Number of hold-down units	Rear stop adjustment range up to (mm)	Cutting angle from to (°)	Max. strokes for full cutting length (/min)	Oil tank capacity (l)	VPE	Table length (mm)	Table depth (mm)	Table height (mm)	Length approx. (mm)	Width/depth approx. (mm)	Height approx. (mm)	Weight approx. (kg)	Drive motor output (kW)	EUR excl. Tax	EUR incl. 19% Tax
HTB AK 2506	4602206	2500	6	5	4	3	12	800	0.5 1.5	25	300	1	2850	550	820	3200	1950	2050	5650	7.5	Price upon request	-
HTB AK 2508	4602208	2500	8	7	5	4	12	800	0.5 1.5	20	300	1	2850	550	820	3150	1970	2055	6150	11	Price upon request	-
HTB AK 2513	4602213	2500	13	11	8	7	12	800	0.5 2	20	405	1	2870	550	800	3250	1950	2110	7550	22	Price upon request	-
HTB AK 2516	4602216	2500	16	14	10	9	12	800	0.5 2.5	18	475	1	2890	600	840	3280	2020	2270	9250	22	Price upon request	-
HTB AK 2520	4602220	2500	20	17	13	11	12	800	0.5 3	16	510	1	2910	600	905	3200	2220	2520	12450	30	Price upon request	-
HTB AK 2525	4602225	2500	25	22	16	14	12	800	0.5 3.5	14	750	1	2930	600	855	3270	2200	2650	14950	37	Price upon request	-
HTB AK 2530	4602230	2500	30	26	20	17	16	1000	0.5 3	12	780	1	3070	850	1200	3450	2500	2900	20950	45	Price upon request	-
HTB AK 3206	4602306	3200	6	5	4	3	15	800	0.5 1.5	20	300	1	3550	550	820	3900	1950	2075	6550	7.5	Price upon request	-
HTB AK 3208	4602308	3200	8	7	5	4	15	800	0.5 1.5	18	300	1	3590	600	830	3850	2050	2100	7350	11	Price upon request	-
HTB AK 3213	4602313	3200	13	11	8	7	15	800	0.5 2	18	405	1	3570	650	900	3900	2070	2315	10250	22	Price upon request	-
HTB AK 3216	4602316	3200	16	14	10	9	15	800	0.5 2.5	17	475	1	3610	700	900	3950	2150	2450	12150	22	Price upon request	-
HTB AK 3220	4602320	3200	20	17	13	11	15	800	0.5 3	15	510	1	3590	700	950	3950	2150	2600	14050	30	Price upon request	-
HTB AK 3225	4602325	3200	25	22	16	14	15	800	0.5 3.5	10	820	1	3630	770	985	3970	2200	2670	18450	37	Price upon request	-
HTB AK 4006	4602406	4000	6	5	4	3	18	800	0.5 1.5	17	340	1	4380	600	830	4640	2000	2100	7850	7.5	Price upon request	-
HTB AK 4008	4602408	4000	8	7	5	4	18	800	0.5 1.5	16	340	1	4390	650	935	4650	2100	2400	10350	15	Price upon request	-
HTB AK 4013	4602413	4000	13	11	8	7	18	800	0.5 2	16	405	1	4370	700	940	4800	2150	2460	13450	22	Price upon request	-
HTB AK 4016	4602416	4000	16	14	10	9	18	800	0.5 2.5	15	595	1	4410	700	950	4800	2150	2550	14950	22	Price upon request	-
HTB AK 4020	4602420	4000	20	17	13	11	18	800	0.5 3	14	640	1	4390	850	1060	4800	2400	2900	20650	37	Price upon request	-
HTB AK 6013	4602613	6000	13	11	8	7	18	1000	0.5 2	12	1020	1	6530	900	1195	6950	2450	3050	26950	37	Price upon request	-
HTB AK 6016	4602616	6000	16	14	10	9	22	1000	0.5 2.5	11	1020	1	6555	850	1175	7000	2500	3000	32450	37	Price upon request	-
HTB AK 6020	4602620	6000	20	17	13	11	27	1000	0.5 3	11	1500	1	6640	1100	1320	7000	2850	3350	43950	60	Price upon request	-

Select Attributes

General

Working width
Cutting performance material tensile strength 400 N/mm²
Cutting performance material tensile strength 450 N/mm²
Cutting performance material tensile strength 600 N/mm²
Cutting performance material tensile strength 700 N/mm²
Number of hold-down units
Rear stop adjustment range up to
Cutting angle from to
Max. strokes for full cutting length
Oil tank capacity
VPE

Dimensions and weights

Table length
Table depth
Table height
Length approx.
Width/depth approx.
Height approx.
Weight approx.

Electrical Data

Drive motor output

Price

excl. Tax
incl. 19% Tax

Productdetails

Swing-beam design for high cutting precision and minimal deformation when cutting thick or hard materials
Automatic adjustment of cutting angle and blade gap based on material type and thickness
Cutting angle adjustment enables higher stroke rates and superior cut quality

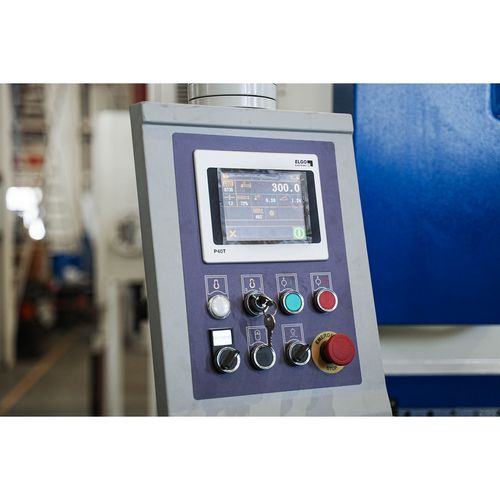

Elgo P40T NC control with touchscreen

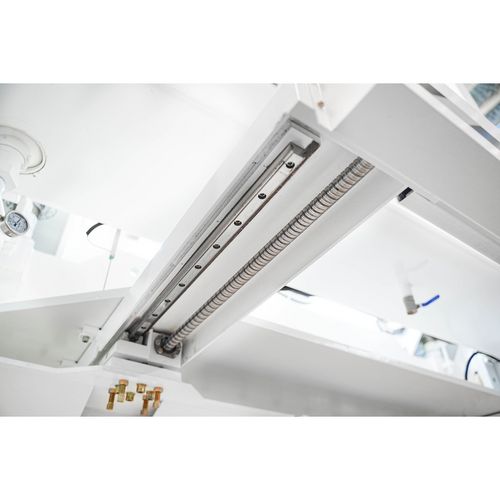

Motorized backgauge featuring recirculating ball screws and heavy-duty linear guides

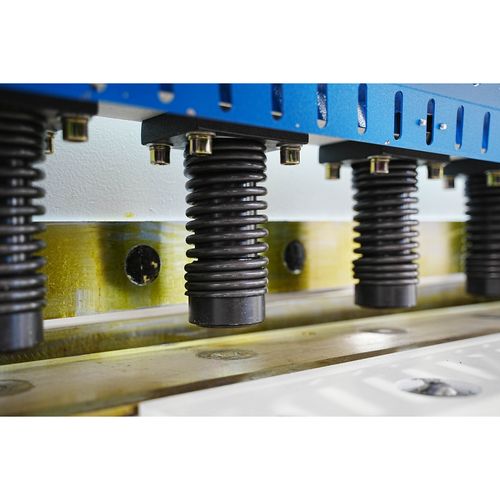

Large-dimensioned hydraulic hold-downs to securely clamp the sheet during the cutting process

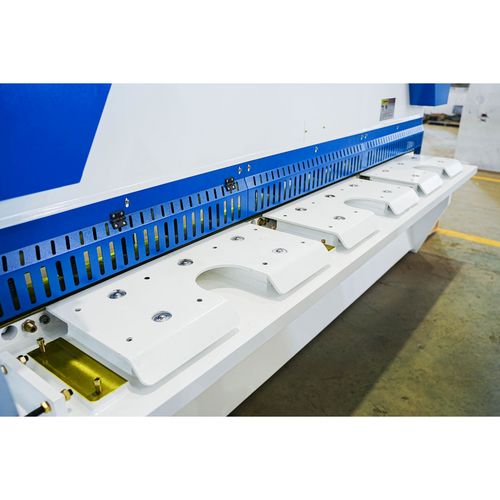

Table surface equipped with transfer rollers for easier handling of large, heavy parts

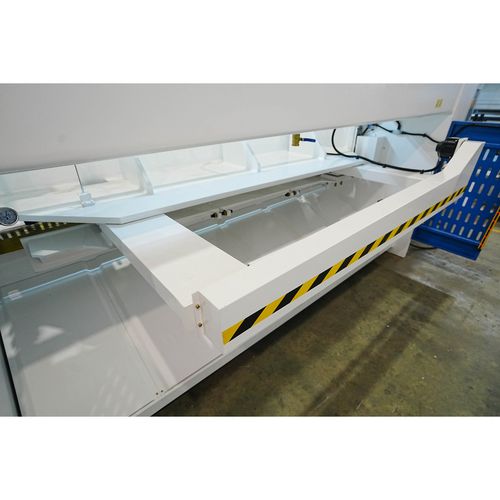

Hinged first section of the finger guard for easier insertion of offcuts
Rear area protection via safety light curtain

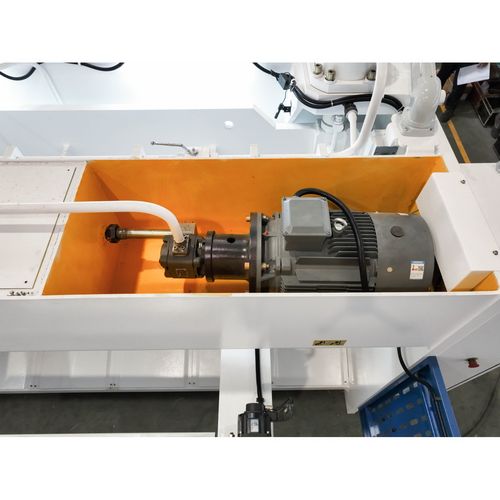

Low-maintenance hydraulics from Bosch Rexroth and Schneider electrical components
Cutting line illumination

Number of sheet support arms	1
Side stop length	1200 mm

Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz

Unit: pc(s).
