| Working width | 4000 mm |
| Cutting performance material tensile strength 400 N/mm² | 13 mm |
| Cutting performance material tensile strength 450 N/mm² | 11 mm |
| Cutting performance material tensile strength 600 N/mm² | 8 mm |
| Cutting performance material tensile strength 700 N/mm² | 7 mm |
| Number of hold-down units | 18 |
| Number of sheet support arms | 1 |
| Rear stop adjustment range up to | 800 mm |
| Side stop length | 1200 mm |
| Cutting angle from to | 0.5 2 ° |
| Max. strokes for full cutting length | 16 /min |
| Oil tank capacity | 405 l |
| VPE | 1 |
Motorised, slide-guided sheet metal shear
HTB AK 4013
with controlled adjustment of cutting angle and cutting gap
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4602413
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Swing-beam design for high cutting precision and minimal deformation when cutting thick or hard materials
- Automatic adjustment of cutting angle and blade gap based on material type and thickness
- Cutting angle adjustment enables higher stroke rates and superior cut quality

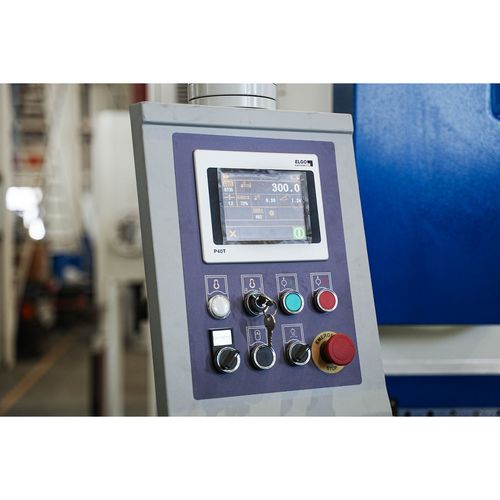

- Elgo P40T NC control with touchscreen

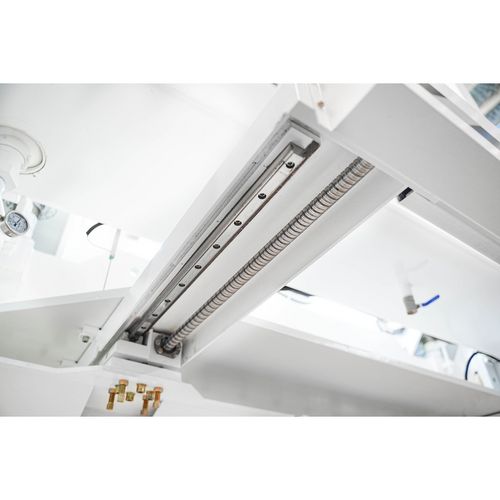

- Motorized backgauge featuring recirculating ball screws and heavy-duty linear guides

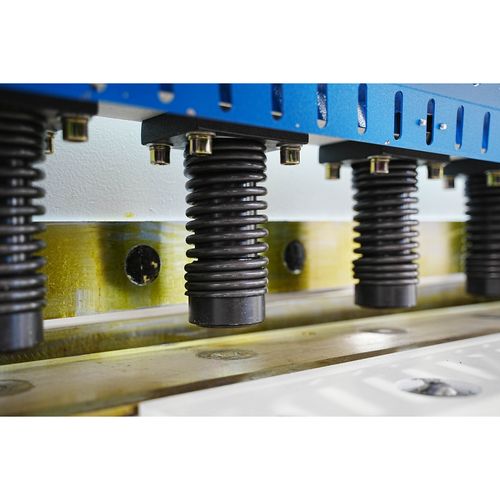

- Large-dimensioned hydraulic hold-downs to securely clamp the sheet during the cutting process

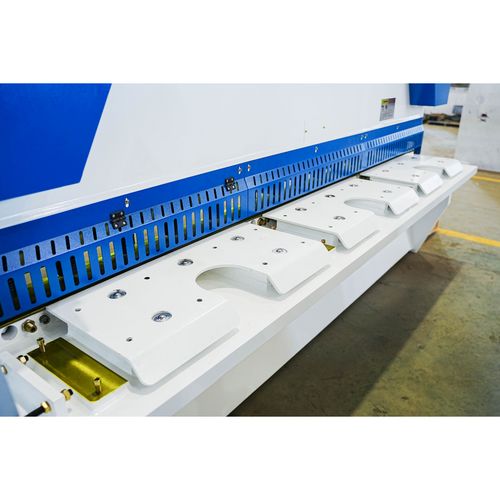

- Table surface equipped with transfer rollers for easier handling of large, heavy parts
- Hinged first section of the finger guard for easier insertion of offcuts
- Rear area protection via safety light curtain

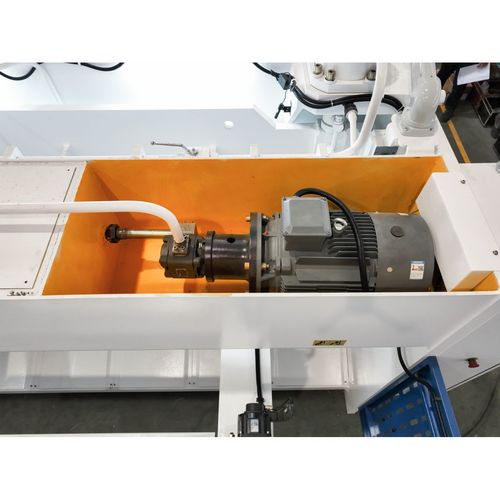

- Low-maintenance hydraulics from Bosch Rexroth and Schneider electrical components
- Cutting line illumination
| Dimensions and weights | |
|---|---|
| Table length | 4370 mm |
| Table depth | 700 mm |
| Table height | 940 mm |
| Length approx. | 4800 mm |
| Width/depth approx. | 2150 mm |
| Height approx. | 2460 mm |
| Weight approx. | 13450 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 22 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Drive | Hydraulic |
| Cutting kerf adjustment | Manual |
| Cutting angle adjustment | Motor |
| Cutting line lighting and visual slots | yes |
