    Sandblasters

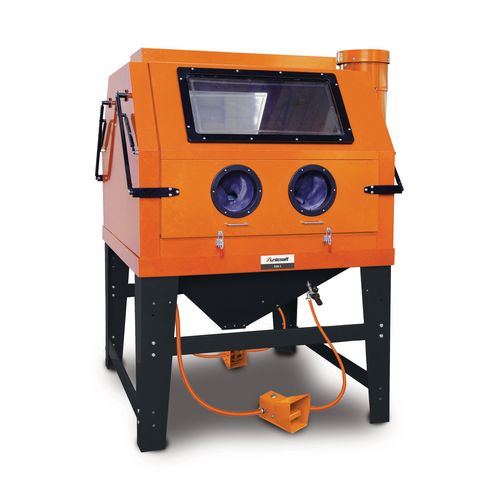

    SSK 5

    with door opening on both sides and integrated extraction system

    2.735,00 EUR excl. Tax / pc(s).
    3.254,65 EUR incl. 19% Tax / pc(s).
    Promotional price *
    2.299,00 EUR excl. Tax / pc(s).
    2.735,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2026 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6204006

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Suitable for various blasting materials, eg quartz, glass ball, plastic ball, nut cases, etc.
    • Ideal for cleaning, rust removal or paint removal of metal parts of all kinds, eg engine parts, fittings, signs, housings, rims, hinges
    • High-quality work gloves made of latex are firmly attached to the housing
    • Optimum vision and work safety during workpiece machining due to the lens with glued-on protective foil
    • Dust-free work due to circumferential seals on cover and door frame
    • Stable storage grid allows laying of workpieces in the cabin interior
    • With drain opening for changing the blasting material
    • Suction pipe for the blasting material attached to the bottom of the collecting container
    • With compressed air connection on the outside
    • Glass bead blasting, corundum blasting, silicon carbide, plastic blasting, etc. can be used

    Room amenities:

    • A large side door for loading and unloading
    • 2 exhaust air openings (1 exhaust air connection ø 92 mm and 1 exhaust air outlet ø 64 mm) for connecting an extraction system
    • 12 volt fluorescent tube with 230 volt power supply and external switch



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Working pressure3.4 – 8.0 bar
    Abrasive grain size recommended0.2 0.3 mm
    Max. abrasive grain size0.125 0.45 mm
    Max. load of grid220 kg
    Max. weight of blast media60 kg
    Extraction performance36 m³/h
    VPE1
    Dimensions and weights
    Cabin volume1200 l
    Cabin interior length1300 mm
    Cabin interior width1180 mm
    Cabin interior height825 mm
    Diameter of hand hole175 mm
    Length approx.1524 mm
    Width/depth approx.1399 mm
    Height approx.1839 mm
    Weight approx.215 kg
    Electrical Data
    Extraction absorbed power1.2 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1
